TUSB2077A: Device Descriptor read/64 error -32 in Ubuntu

Kenn

Part Number: TUSB2077A

Hello

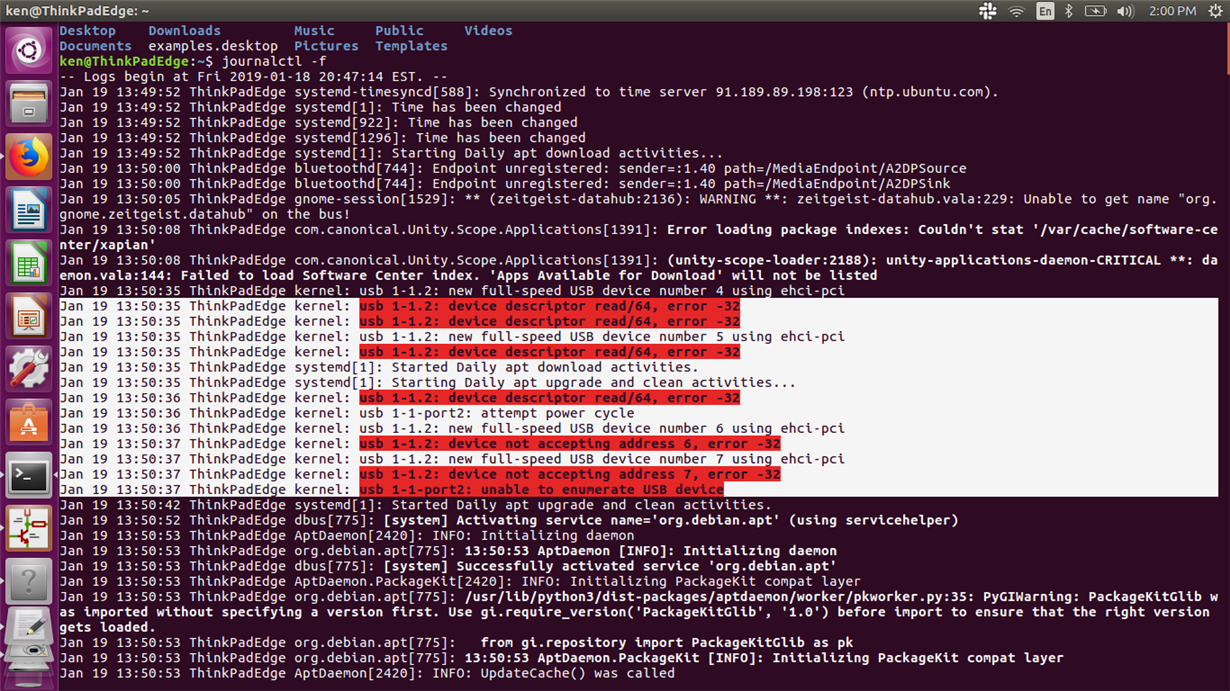

After connecting the TUSB2077 to my computer running Ubuntu and running journalctl -f I get the following errors as detailed in the picture. I have also tried connecting to a windows computer but it also says device descriptor not found. Any ideas as to what maybe causing this error? I am currently not concerned with connecting other devices to the hub.

Attached are images of errors and schematics

Thanks in advance ,

Ken

over 6 years ago

0 JMMN over 6 years ago

TI__Guru 60870 points

Hi Ken,

Can you share your schematic? This sounds like a possible schematic / electrical issue.

Thanks,
Julie

0 Kenn over 6 years ago

Prodigy 80 points

0 Kenn over 6 years ago

Prodigy 80 points

0456.Schematics.pdf

0 Kenn over 6 years ago in reply to JMMN

Prodigy 80 points

Just posted the schematics down bellow. Right now I am not concerned with the USB1_D lines, I'm just trying to get USB2_D lines to work.

0 JMMN over 6 years ago in reply to Kenn

TI__Guru 60870 points

Hi Kenn,

When you connect the TUSB2077 to a Windows system, can you load the usbview.exe tool and see if the hub enumerates and if it fails what the error is? I understand your application is Linux based, but there are better free debug tools for Windows.

I don't see anything obvious from the schematics, can you make sure that you see DP is pulled up on the connection from the host to the hub?

Regards,
JMMN

0 Kenn over 6 years ago in reply to JMMN

Prodigy 80 points

Hello JMMN,

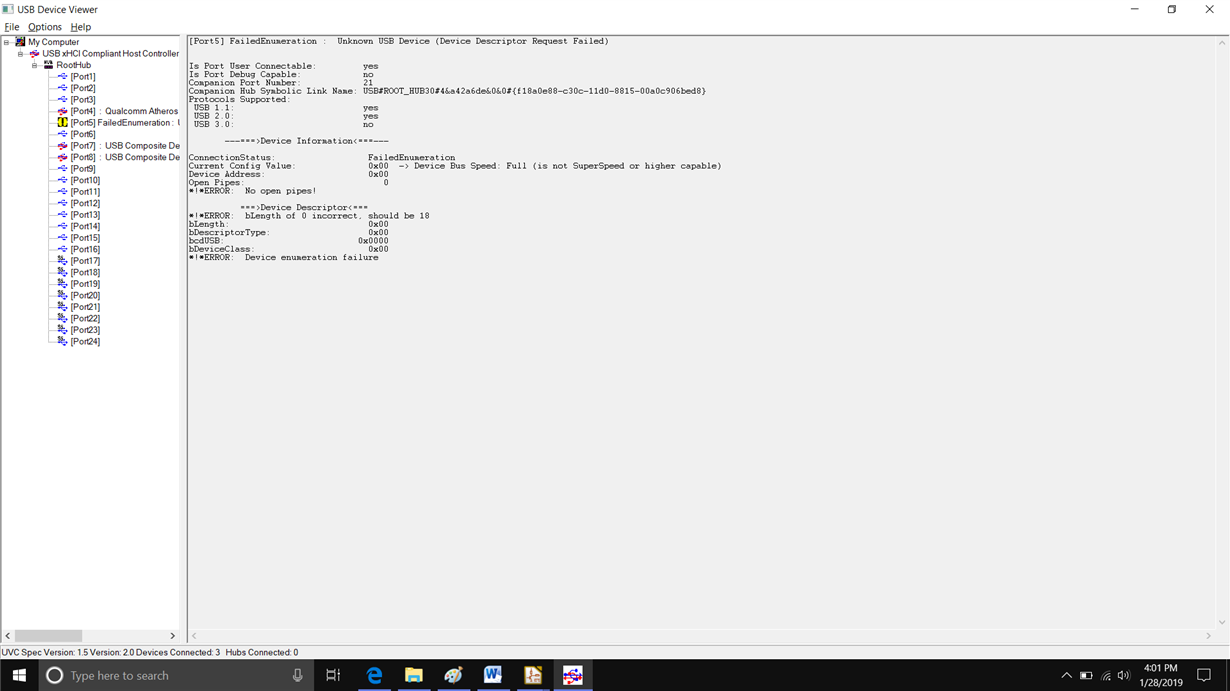

Using usbView.exe it says [Port5] FailedEnumeration : Unknown USB Device (Device Descriptor Request Failed). I have attached a screenshot for the full error. The DP connection is pulled up by the DP0PUR pin from the Hub. Lights for HUBCFG and PORTDIS are illuminated. Do I have to program the eeprom before use?

Thanks,

Kenn

0 JMMN over 6 years ago in reply to Kenn

TI__Guru 60870 points

Kenn,

Please try pulling EXTMEM high, reseting or power cycling the hub and see if it enumerates. I see that DP is pulled high by DP0PUR in the schematic, can you confirm that actually occurs with a scope probe or multimeter?

Thanks,
JMMN

0 Kenn over 6 years ago in reply to JMMN

Prodigy 80 points

JMMN,

Pulling EXTMEM and power cycling the hub hasn't changed anything. DP0PUR is outputting 3.25 V. The HUBCFG output LED is indicating the hub is not configured. Could this be a layout issue?

Thanks for the assistance,
Kenn

0 JMMN over 6 years ago in reply to Kenn

TI__Guru 60870 points

Hi Kenn,

What is generating the RESET for the system?

Regards,
JMMN

0 Kenn over 6 years ago in reply to JMMN

Prodigy 80 points

Hi JMMN

I have a TPS3809K33 voltage supervisor generating a reset signal as well as a button that can short the reset signal to Ground. The schematic is on the top of first page

Thanks,

Kenn

0 JMMN over 6 years ago in reply to Kenn

TI__Guru 60870 points

There is no obvious issue from the schematic, do you have access to an oscilloscope to check DP/DM lines for traffic?

Regards,
JMMN

0 Kenn over 6 years ago in reply to JMMN

Prodigy 80 points

When the usb hub is plugged into a computer the DP DM lines have traffic. After windows states that enumeration failed the traffic stops.

Thanks,

Kenn

0 JMMN over 6 years ago in reply to Kenn

TI__Guru 60870 points

Can you send a photo of the line states after the traffic stops?
