MAX3222: tPHL,tPLH and tsk at Receiver Section of MAX3222

yoshiki hasebe

Part Number: MAX3222

Dear Sirs,

My customer asked us about tPHL,tPLH and tsk at Receiver Section of MAX3222.

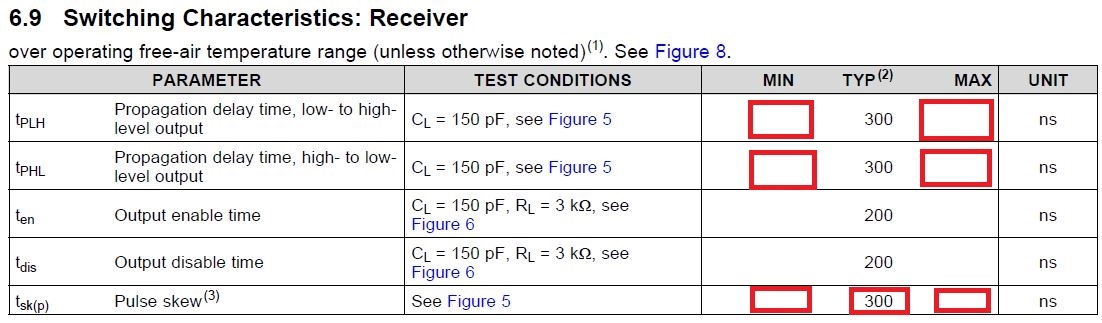

In the specification table below,
1. Please let me know the min, max values of tPHL and tPLH.
2. Please let me know how to calculate the typical value of 300ns of tsk (p) (or measurement method).
3. Please let me know the min and max values of tsk (p).

Best Regards,

Y.Hasebe

over 6 years ago

0 Hao L over 6 years ago

TI__Mastermind 25705 points

Hasebe-san,

What's the data rate of your application? In general, the receiver switching characteristics are not the bottleneck. That's why the min and max value are not characterized. The skew is measured at 50% amplitude of the output vs. the crossing of 1.5V with 150pF load. Please let me know if you have more questions.

Regards,
Hao

0 yoshiki hasebe over 6 years ago in reply to Hao L

Mastermind 6385 points

Hello Hao-san,

Thank you for your reply.

I am asking my customers about your question right now.
I will reply as soon as an answer arrives.

In general, the receiver switching characteristics are not the bottleneck.

⇒Do you have detailed information that will support the above?

Best Regards,

Y.Hasebe

0 Hao L over 6 years ago in reply to yoshiki hasebe

TI__Mastermind 25705 points

Hasebe-san,

MAX3222 works with data rate up to 250kbps, which is about 4us bit time. 300ns propagation delay or skew is less than 10% of it. Hopefully it makes sense. Please let me know when you get the information.

Regards,
Hao

0 yoshiki hasebe over 6 years ago in reply to Hao L

Mastermind 6385 points

Hello Hao-san,

Thank you for your reply.

I got the data rate from them.
The data rate is 19,200 bps.
If you calculate based on your Information,
The bit time is 52.08 μs.
300 ns propagation delay or skew is less than 1% of it.

Is this correct?

Best Regards,
Y.Hasebe

0 Hao L over 6 years ago in reply to yoshiki hasebe

TI__Mastermind 25705 points

Hasebe-san,

Yes. That's true. I hope it addresses your concern.

Regards,
Hao
