DS90UB953-Q1: DVP Mode PCLK Limitation

Takuma Ito

Expert 5200 points

Part Number: DS90UB953-Q1

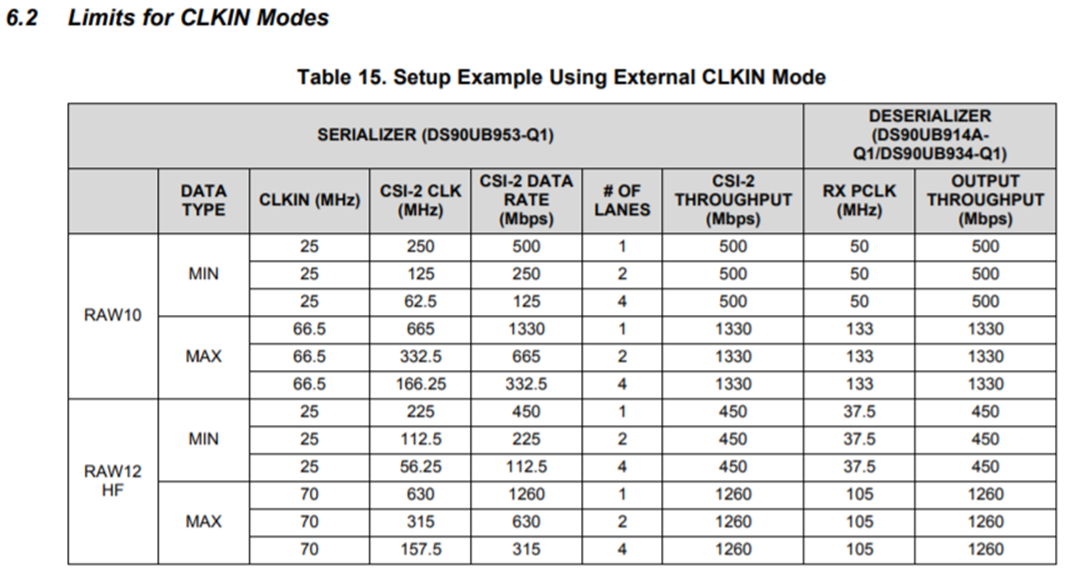

Regarding to snla270a, the maximum RX PCLK of RAW10 mode for 914A/934 is 133MHz in the table 15.

I thought maximum PCLK for 914A/934 is up to 100MHz.

Does 914A/934 actually accept PCLK up to 133MHz?

over 7 years ago

0 Hamzeh Jaradat over 7 years ago

TI__Guru** 116750 points

Hello Takuma,

you are right, the 934 can support PCLK up to 133MHz but only if paired with the 953 in Backward (DVP) mode.
I do not believe this is also valid for the 914A but I can double check.

0 Takuma Ito over 7 years ago in reply to Hamzeh Jaradat

TI__Expert 5200 points

hello Hamzeh,

Thank you for reply. could you double check about 914A limitation?

Also i want to confirm if 934 can support 133MHz. I dont see the description in the 934 datasheet.

0 Hamzeh Jaradat over 7 years ago in reply to Takuma Ito

TI__Guru** 116750 points

Hello Takuma,

as I said, the 934 can support up to 133MHz PCLK only if paired with the 953. It is not mentioned in the 934 d/s because it is a special application with the 953 in DVP mode. So it is just mentioned in the 953 DVP mode App note.

The 914A can't support this. Anyway, we do not recommend using the 914A in any new design. please use the 934 instead.
