Part Number: DS90UB934-Q1

I want to use ALT4532P

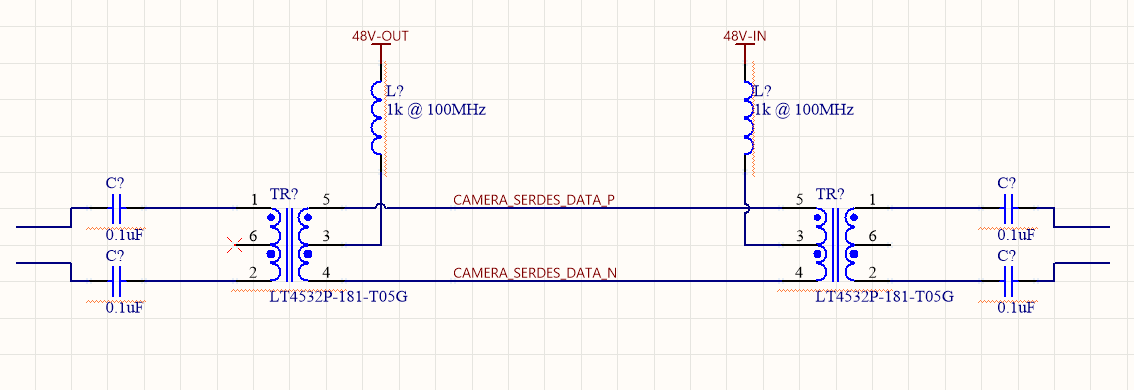

The picture is an approximate scheme

I would like to know if this will work

over 7 years ago

0 Hamzeh Jaradat over 7 years ago

TI__Guru** 116850 points

Hello,

If I look in the ALT4532P datasheet I can the insertion lose is only specified up to 200MHz which is not sufficient for using FPD-Link III devices such as the DS90UB934.
Our device (DS90UB934) works on the frequency range from 2.5MHz to 1Ghz. So please make sure that the ALT4532P is good enough to support that frequency range.

0 user4646208 over 7 years ago in reply to Hamzeh Jaradat

Intellectual 580 points

I think I need an ALT4532H and not an ALT4532P?

product.tdk.com/.../alt-recommend.html

0 Hamzeh Jaradat over 7 years ago in reply to user4646208

TI__Guru** 116850 points

Hello,

You are right! The H version looks better than the P version at the higher frequencies, i.e. 1GHz.
Nevertheless, it still have 2dB loss at 1GHz, so please do measure and make sure that the complete link (PCBs + Cable + Connectors) characteristics are within our requirements.
