TDP142: AUXP and N connection in the example schematic in the datasheet.

Oba
Genius 17335 points
Part Number: TDP142

Hello,

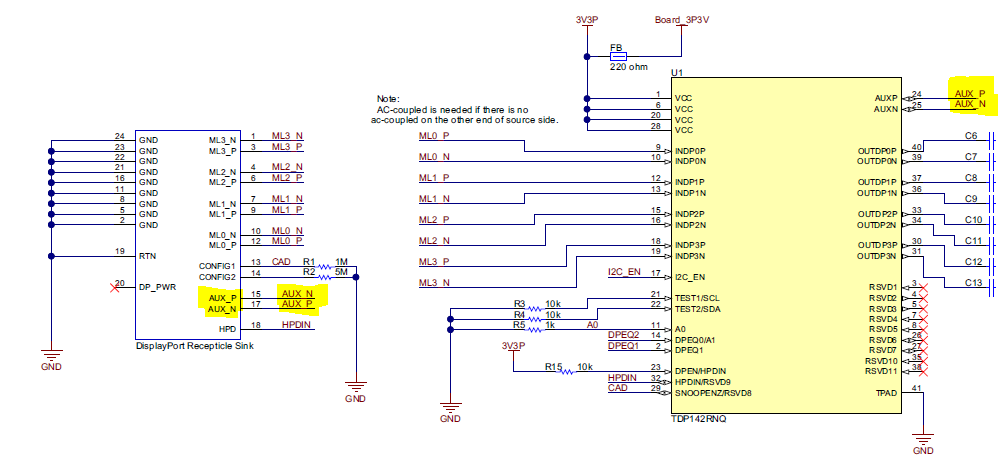

I have a question for Figure 19(P24) of TDP142 datasheet(SLLSEZ1B).

In this figure, TDP142 AUXP pin is connected to AUX_N(17) pin of the receptacle.

And TDP142 AUXN pin is connected to AUX_P(15) pin of the receptacle.

I think they are reversed. Are these connection typo?



Regards,

Oba
