SN75DPHY440SS: CSI and DSI system application discussion

Eric Lo72350

Part Number: SN75DPHY440SS

Hi Sir

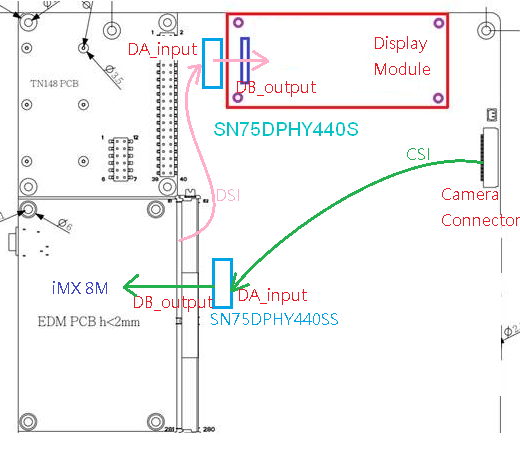

Below is my customer's application. They use 2 SN75DPHY440SS in IPC project.

one is for CSI(camera), another is for DSI(LCD panel).

could you help to take a look, the placement for these two SN75DPHY440SS are suitable?

and pls help to provide your comment for customer's schematic. thanks!!

schematic PDF:

0 David (ASIC) Liu over 6 years ago

Eric

The schematic looks correct.

What is their data rate ad what is the distance before and after the two DPHY440SS?

Thanks
David

0 user5360598 over 6 years ago in reply to David (ASIC) Liu

Hi David

1) My mainboard provides 4-lane DSI, each of them can operate up to a maximum bit rate of 1.5Gbps.

My mainboard provides 4-lane CSI, each of them can operate up to a maximum bit rate of 1.5Gbps.

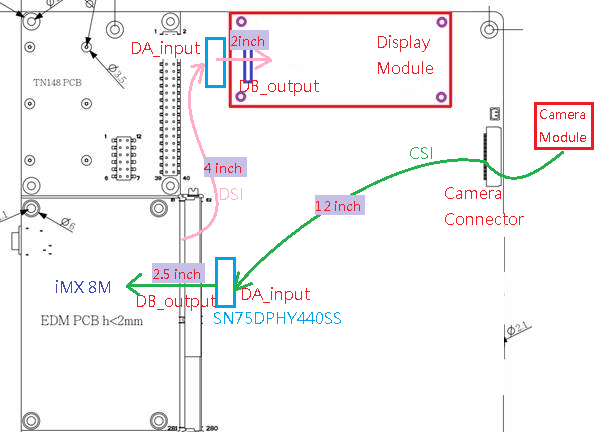

2) I typed the length of CSI and DSI in the photo.

Thank you

Pei-Chi

0 David (ASIC) Liu over 6 years ago in reply to user5360598

Pei-Chi

12in is around 3dB loss at 750MHz, so we should be ok.

Thanks
David
