DS110DF410: Auto Adapt Complete bit (bit[6] of cdr_status register)

K.Yaita

Part Number: DS110DF410

Hi Team,

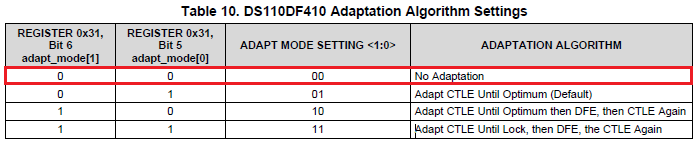

My customer set "No Adaptation" mode, Register 0x31 bit [6:5] =00.

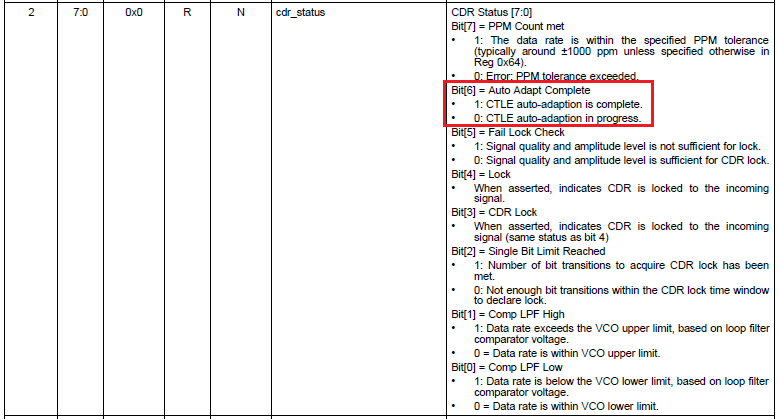

However, he has found Auto Adapt Complete bit (bit[6] of cdr_status) sometimes shows "1" or "0" after each power-on.
He said Auto Adapt Complete bit shows both "1" and "0" in random order although "No Adaptation" mode is set.

Is it possible case for DS110DF410?
I would like to ask just it is possible case or not.

Best Regards,
Yaita

over 6 years ago

0 Nasser Mohammadi over 6 years ago

TI__Guru* 93670 points

Greetings Yaita,

I duplicated your findings in lab and it is indeed possible that we get auto adapt complete bit on or off even though we are in adapt mode 0.
This is a side effect of digital state machine.

Regards,,nasser

0 Kawai over 6 years ago in reply to Nasser Mohammadi

Guru 19785 points

Hi Nasser-san,

Can we completely ignore this bit [6] result when using in Manual CTLE mode (Adapt Mode 0) ?

Best Regards,
Kawai

0 Nasser Mohammadi over 6 years ago in reply to Kawai

TI__Guru* 93670 points

Hi Kawai-San,

In manual adapt mode 0 yes we can ignore this bit. It's operation in adapt mode 0 is not deterministic.

Regards,,nasser
