TUSB8041A: TUSB8041 is always offline

boer.deng

Part Number: TUSB8041A
Other Parts Discussed in Thread: TUSB8040A, TUSB8040

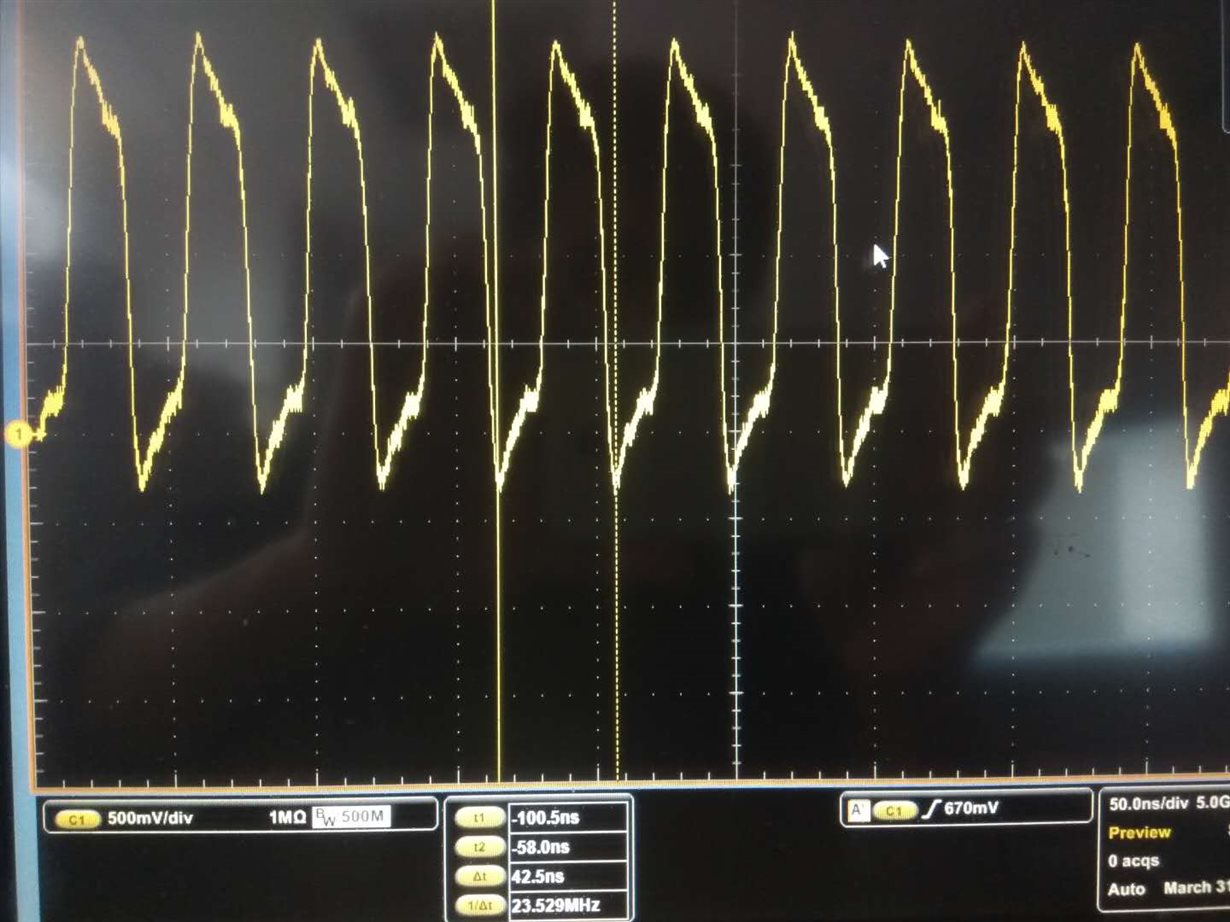

The main chip we purchased is the TUSB8040A HUB, which connects the three industrial cameras stably and does not drop the line during long test.The measured crystal output and input signal waveform is as follows；

Is the XO waveform normal?

over 6 years ago

0 Malik Barton57 over 6 years ago

TI__Guru 64326 points

Could you provide a schematic for review? If the hub operational? Can the downstream devices be detected by your USB Host? What is the configuration for SMBUSz/SS_SUSPEND pin? For default operation this pipn should be tied high or left unconnected (use internal pull up). Please give more details on your issue.

0 boer.deng over 6 years ago in reply to Malik Barton57

Expert 1085 points

SMBUSz/SS_SUSPEND pin is suspended, internally pull-up;The downstream equipment can be detected. The equipment is connected to three industrial cameras. After working normally for a few minutes, the cameras will appear to be working normally, but the image preview is no longer available.There is the phenomeHUB3.pdfnon of HUB instability

0 boer.deng over 6 years ago in reply to Malik Barton57

Expert 1085 points

There is a difference between external not using EEprom

0 Malik Barton57 over 6 years ago in reply to boer.deng

TI__Guru 64326 points

Could you describe the difference between when using an external EEPROM and when not using an external EEPROM? Could you give the configuration of J100 and J101 during your test? Is it possible that the cameras are going into a low power state? Can you confirm if the USB traffic is idle between the cameras and the USB Hub? Are the cameras USB 2.0 or USB 3.0?

0 boer.deng over 6 years ago in reply to Malik Barton57

Expert 1085 points

It can be seen from the indicator light of the camera that the camera is working normally;The purchased TUSB8040 HUB works correctly;The camera is definitely a 3.0 interface

0 boer.deng over 6 years ago in reply to boer.deng

Expert 1085 points

6562.HUB3.pdf

Attached is the schematic diagram

0 Malik Barton57 over 6 years ago in reply to boer.deng

TI__Guru 64326 points

Could you explain which switch in the switch array is on vs. off? the new schematic seems to be the same at the old schematic.

0 Malik Barton57 over 6 years ago in reply to Malik Barton57

TI__Guru 64326 points

Hi,

Is there any more support needed for this issue? If so please reply with any relevant details so that I can further assist you. For now I will be marking this thread as "TI Thinks Resolved". If you have resolved your issue, please post the solution to the original problem/post for others with similar issues.
