MAX3243E: IC pin 1 position on strip

Patrick Chen

Mastermind 8875 points

Part Number: MAX3243E

Hello

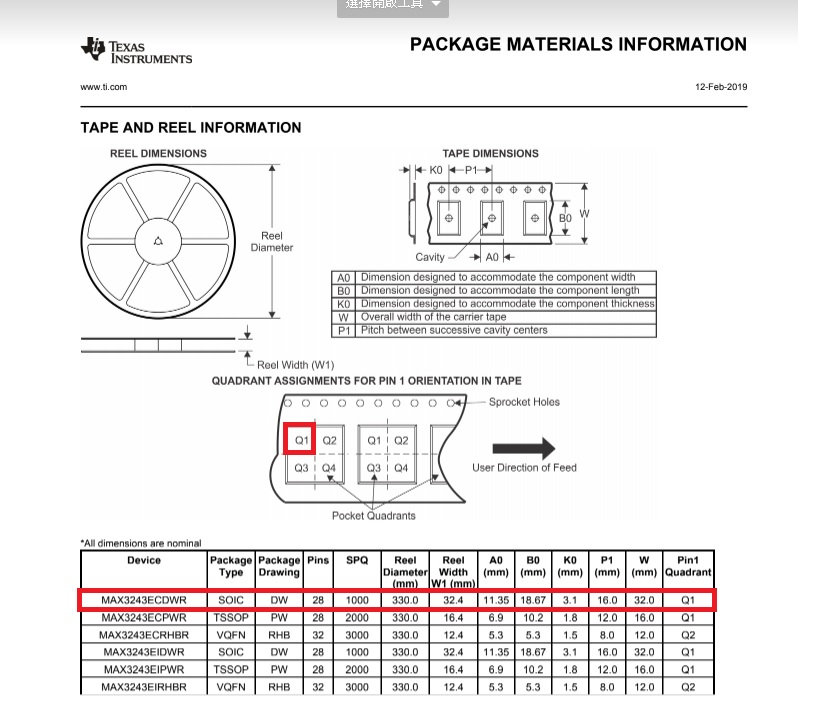

Could I know IC PIN 2 position one below red mark? Thank you. ~

Patrick

over 6 years ago

0 Miguel Robertson over 6 years ago

TI__Guru 62920 points

Hi Patrick,

Pin 1 is placed in quadrant 1 (top left in the figure above), and pin 2 would be immediately adjacent to it (i.e., one pin "below" pin 1). Let me know if this doesn't make sense or if I misunderstood your question.

Regards,
Max

Interface

Interface forum

MAX3243E: IC pin 1 position on strip
