TPS65987D: Stencil design

Tiger Yeh

Part Number: TPS65987D
Other Parts Discussed in Thread: TIGER,

Customer is using 0.13mm thick stencil and found there is 1% to pin short between pin1 to pin2 (although they do short internally), but appearance is not allowed.

Could you please advise stencil design for 0.13mm thickness stencil?

over 7 years ago

0 Adam Mc Gaffin over 7 years ago

TI__Mastermind 30000 points

Hello Tiger,

You can follow the stencil design that is shown within the datasheet for the TPS65987D.

Hope this helps answer your question. If so, please click THIS RESOLVED MY ISSUE

0 Tiger Yeh over 7 years ago in reply to Adam Mc Gaffin

TI__Expert 5815 points

Hi Adam,

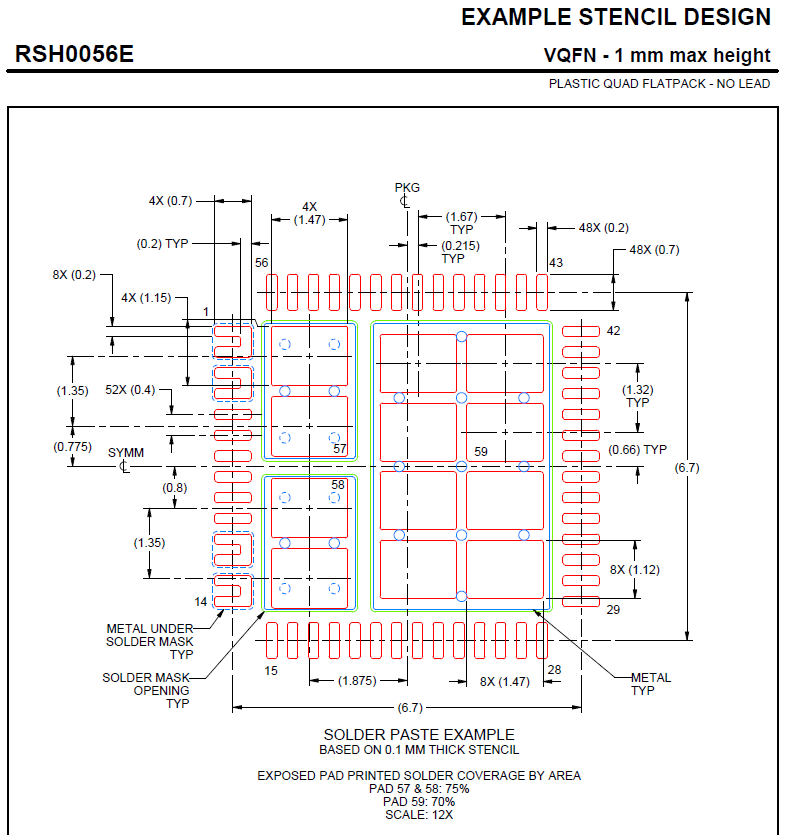

The drawing is based on 0.1mm thickness stencil.

I am asking 0.13mm thickness stencil, please help to provide suggestion, thanks!

0 Adam Mc Gaffin over 7 years ago in reply to Tiger Yeh

TI__Mastermind 30000 points

Hello Tiger,

I would recommend that your customer follows the example shown within the schematic using the 0.1mm stencil if they do not want the appearance of pins 1 and 2 shorting together
