TMDS171: TMDS171 register

Lei

Unfortunately, we can only provide the EyeScan SW tool, but not the register information used for the eye scan.

Thanks
David

May I set the register by the SW tool? and may I use the code in FPGA?

However, give me the web to download the SW tool.

Hi David:
I want to get the instructions Eye diagram section of the register. And do not to config the register

Lei

Are you looking for the instruction on how the eye diagram is being generated or are you looking for the eye diagram registers?

Thanks
David

looking for the instruction on how the eye diagram is being generated . I want to check the Eye diagram quality by myself PC software.Then my customer can test signal if he can not get a Image signal clearly

Lei

The general procedure is:

• Enable dedicated EyeScan input samplers, and generate an error when the value sampled differs from the normal data sample. EyeScan errors are accumulated in the BERT counter.
• Apply a voltage offset to the dedicated EyeScan input samplers, this is the eye height.
• For the particular voltage offset, apply a phase offset to adjust the point in the eye that the dedicated EyeScan data samples are taken, this is the eye width.
• Reset the error counter to remove any false errors accumulated as a result of the voltage or phase offset adjustments.
• Run in this state for a period of time, periodically checking to see if any errors have occurred.
• When errors have occurred at a particular voltage and phase offset, change voltage and/or phase offset, and repeat.

Thanks
David

David (ASIC):
you give me the software. Now i want to program a PC software include this by myself. So I want to know the function of every registers. and why to set 1 or 0.
www.ti.com/.../toolssoftware.

Lei

We provide the EyeScan SW to our customer, but unfortunately we can't provide the instruction for the customer to write their own EyeScan SW.

Thanks
David

Hi, David,

Can we provide the guideline for the register map? Normally, in other device, we can provide the detail register map introduction.

JW

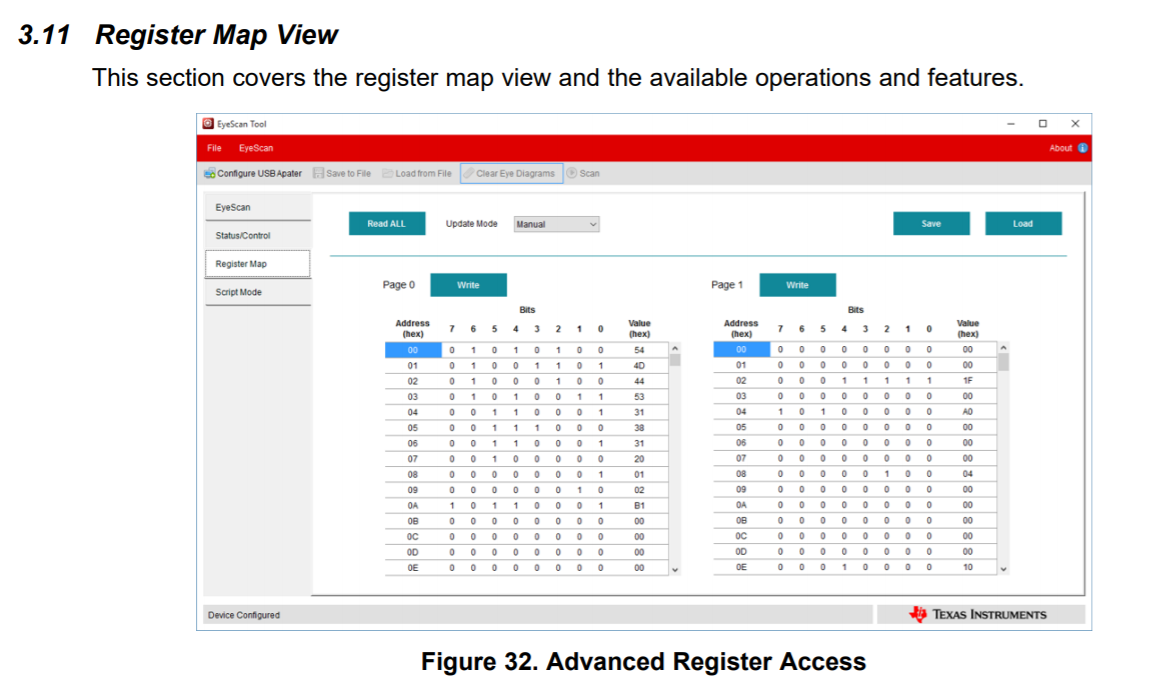

Please refer to the TMDS171 datasheet for the detailed description of the register. The datasheet provides Page 0 register information which is sufficient for device operation. Page 1 registers are for debugging purpose and would require an NDA before we can share it.

Thanks
David

Hi David:
IF have a NDA file. Register information can be opend?
