DP83822IF: Electrical specification of MDI

Roger Newbould31

Part Number: DP83822IF

I have a question regarding the electrical specification of the MDI (media dependent interface) of the DP83822IF.

I assume that VOD is the differential output swing of TD, the signals going from the PHY to the SFP (FX mode).

What voltage swing is needed at the input to the PHY (RD)?

0 Geet Modi over 6 years ago

Hi,

100Base-FX Reciever voltage swing range is 0.3 to 1V

Regards,
Geet

0 Roger Newbould31 over 6 years ago in reply to Geet Modi

Thanks.

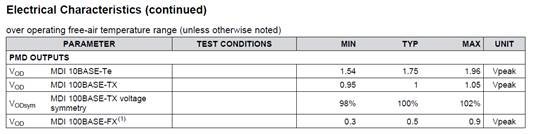

If I understood you correctly, the values in the lower table apply for Transmitter AND Receiver? I guess you mean 0.3V to 0.9Vpeak for FX?

Regards,

Roger

0 Geet Modi over 6 years ago in reply to Roger Newbould31

Hi Roger,

Yes, your understanding is correct. Sorry for the writing it as 1.0V.

Regards,
Geet
