TPS65987DDJ: Asking for the TPS65987DCJ 4CC command DISC

SHH

Part Number: TPS65987DDJ

Hi Team,
Would you please adivse what the scenario that can use 4CC command "DISC"? Once using 4CC "DISC", how to recover from this lock situation?
please refer to application note table 4-4.

BR,
SHH

over 6 years ago

0 Eric Beljaars over 6 years ago

TI__Mastermind 36756 points

Hi Scott,

The DISC 4CC command will force a disconnect on the Type-C port. The PD controller would automatically renegotiate the contract after the disconnect has completed.

Thanks,
Eric

0 SHH over 6 years ago in reply to Eric Beljaars

TI__Mastermind 32126 points

Hi Eric,

thanks.

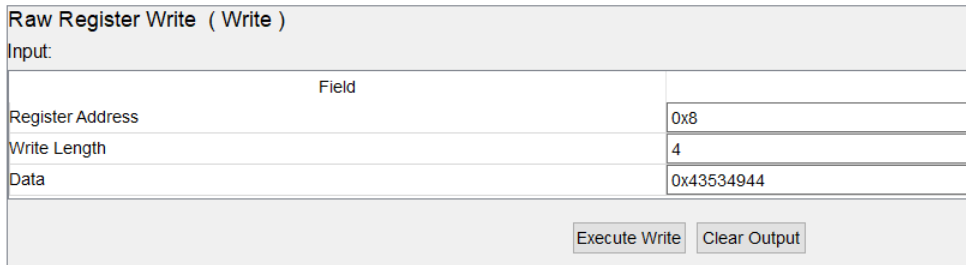

I tried to use send DISC as following. However, it still didn't work. would you please help check how to unlock this 4CC command?

BR,

SHH

0 Eric Beljaars over 6 years ago in reply to SHH

TI__Mastermind 36756 points

Hi Scott,

The DISC command is included in the TPS65987DDJ code. You may be running into an issue with the GUI tool. Can you connect an I2C analyzer to see if the command is being sent correctly?

Thanks,
Eric

0 SHH over 6 years ago in reply to Eric Beljaars

TI__Mastermind 32126 points

Hi Eric,

Could you let me know where the DISC command is?

BR,

SHH

0 Eric Beljaars over 6 years ago in reply to SHH

TI__Mastermind 36756 points

Hi Scott,

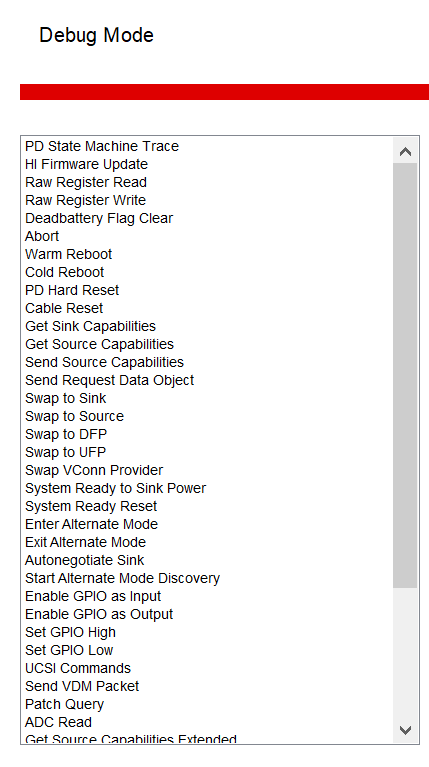

The DISC 4CC command is not yet available in the GUI. We are working on getting it added for the next released version.

Thanks,
Eric

0 SHH over 6 years ago in reply to Eric Beljaars

TI__Mastermind 32126 points

Hi Eric,
thanks for confirm.
Would you please provide the procedure for how to use DISC? My customer need to test this function tomorrow.

BR,
SHH

0 Eric Beljaars over 6 years ago in reply to SHH

TI__Mastermind 36756 points

Hi Scott,

The TPS65987DDJ Host interface document can be found in the secure site. You can find instructions on the DISC command in that document.

Thank you,
Eric
