We are see the SN65DSI86 datasheet Features show the resolution support 1902x1200,

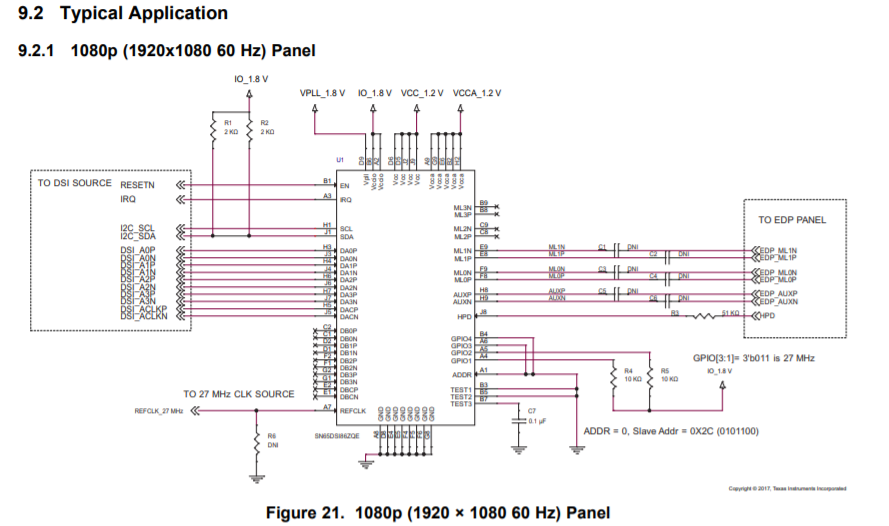

But 9.2.1 single MIPI channel is 1080p(1920x1080 60Hz), If customer SN65DSI86 use the single mipi input，Can be support 1920*1200 resolution?

Hugo

over 6 years ago

0 David (ASIC) Liu over 6 years ago

TI__Guru**** 176721 points

Hugo

Please see this thread: and this app note http://www.ti.com/lit/an/slla425/slla425.pdf to calculate the minimum DSI lane required.

Thanks

David

0 Hugo Liu over 6 years ago in reply to David (ASIC) Liu

Genius 5095 points

Hi David,

May I Double check with you, about the calculate .
the customer single mipi input so DSI lanes is 4.
if resolution 1920x1200 60Hz 24 Bit, the 1920x1200x60x24/4DSI=829.44M, Less than 1.5Gbps per lanes.
So if single mipi input SN65DSI86 can be meet 1920x1200 right?

Hugo

0 David (ASIC) Liu over 6 years ago in reply to Hugo Liu

TI__Guru**** 176721 points

Hugo

Assuming for 1920x1200, the pixel clock is 154MHz

Then the total_stream_bit_rate = 154 x 24 = 3.696G

Min_DSC_CLK_FREQ = total_stream_bit_rate / (2 x min_DSI_lane (4)) = 462MHz. So single MIPI input is sufficient.

Please make sure they have TEST2 pin pulled high in their schematic.

Thanks
David
