DS90UB960-Q1: DS90UB960 + DS90UB953(4), Muxing of multi camera CSI-2 data.

Dexter Choi

Expert 2795 points

Part Number: DS90UB960-Q1

Dear Sir,

we designed DS90UB960 and DS90UB953.

We need to mux CSI-2 data of Sensor0, Sensor1. and mux CSI-2 data Sensor 2 and sensor3.

we are using CSI-2 2 lanes data of each sensor.

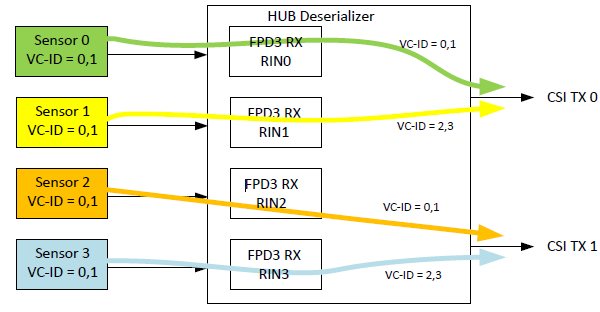

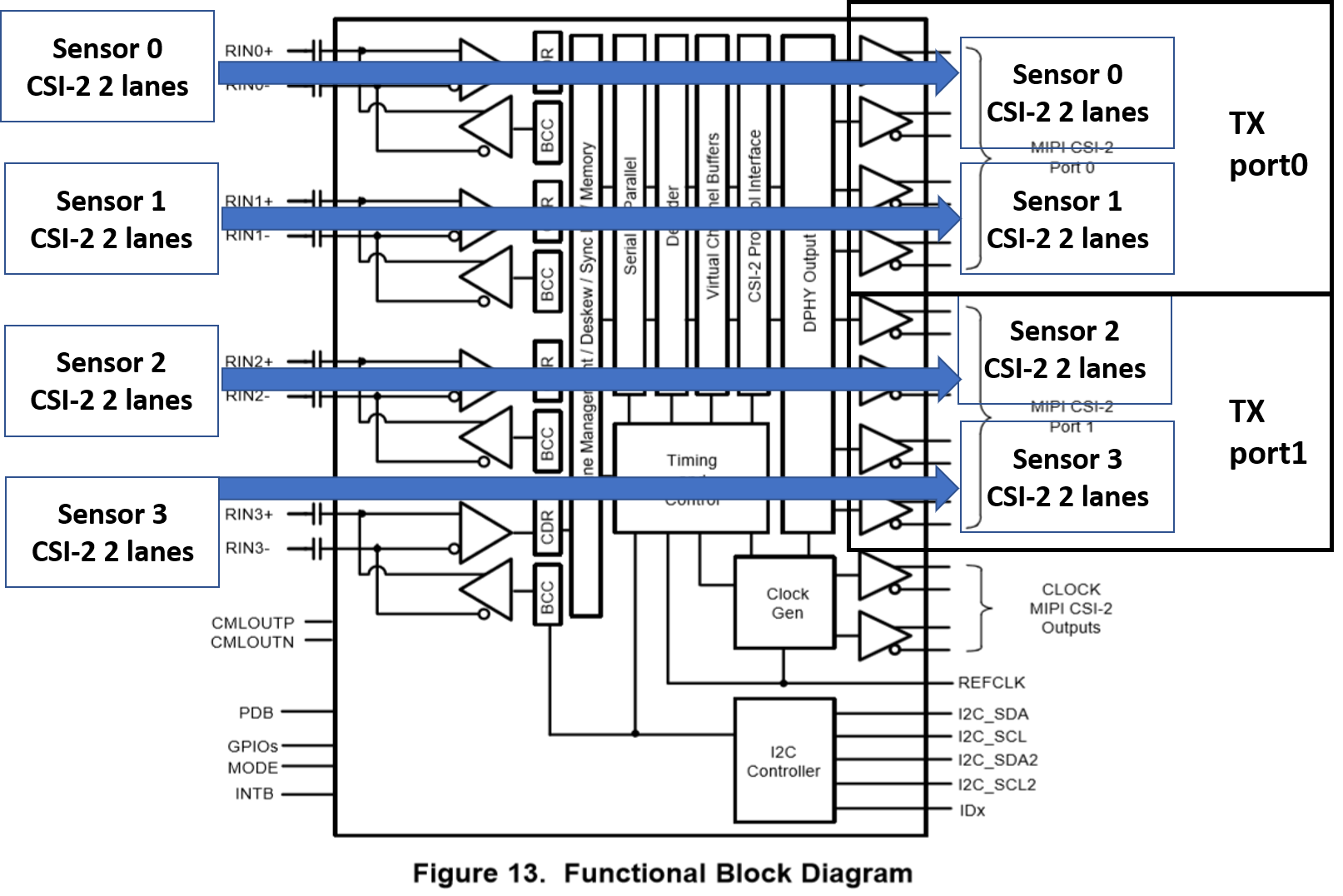

DS90UB960 support mux CSI-2 data input and CSI TX can support as below structure?

If possible. how to set the register of DS90UB960. please let me know the guide.

0 Steven(Shenzhen) Shi over 6 years ago

Yes, 960 can support this function, you can set:

1. forwarding FPD-Link port0/port1 to CSI2 port0, forwarding FPD-Link port2/3 to CSI2 port1. reg. setting of 960: 0x20

2. set CSI2 port lane number in reg.: 0x33.

best regards,

Steven

0 Dexter Choi over 6 years ago in reply to Steven(Shenzhen) Shi

Expert 2795 points

Dear Sir,

I had set 0x20, 0x33 but it is not working.

can you advise me any comment?

could you give me example register code?

data format

1920x1080 YUV422 8bit MIPI 2Lane

data lane configuration

RX0, RX1 => CSI 0 port

RX2, RX3 => CSI 1 port

0 Steven(Shenzhen) Shi over 6 years ago in reply to Dexter Choi

Hello,

I just check the reg., the 0x20 should be set as 0x0C.

also, the reg. 0x73/74/75/76 (04 38 0f 00) is correct, it mapped the input video in RX1 (0x4c = 0x12) is 1920x1080 (yuv422).

regards,

Steven
