TPS65987D： Can the TPS65987 be used with the HD3SS460?

Peggie

Intellectual 445 points

Part Number: TPS65987D
Other Parts Discussed in Thread: HD3SS460, TUSB1064, TPS65981, , DP-EXPANSION-EVM

Hi，

I saw that the TPS65987-90EVM is used with the TUSB1064, can it be used with the HD3SS460? How to configure it?

I have TPS65987-90EVM and DP_EXPANSION EVM, can I use it together?

over 6 years ago

0 Adam Mc Gaffin over 6 years ago

TI__Mastermind 30000 points

Hello,

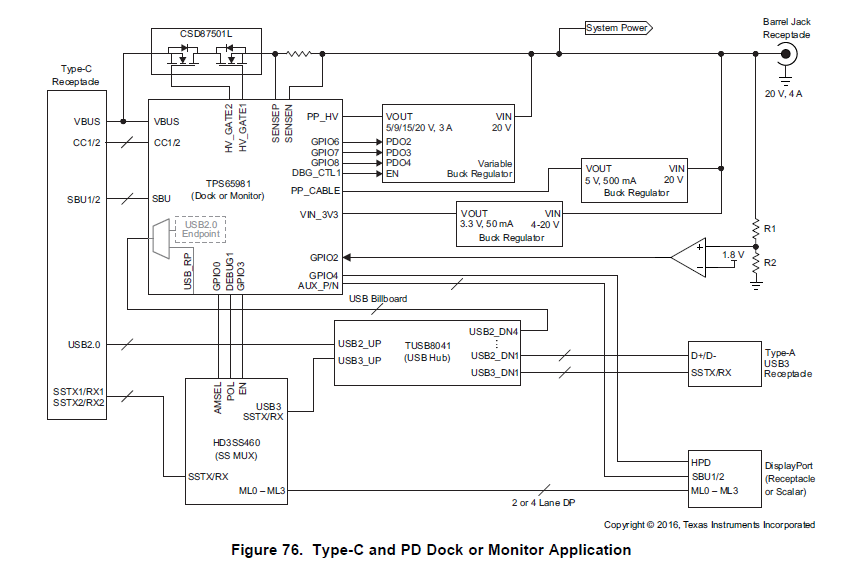

You can use the following block diagram from the TPS65981 datasheet as reference. The connection between the TPS65987D and HD3SS460 would be the same.

For your other question, no you cannot use the DP-Expansion-EVM. You will need to use the 10G-Expansion-EVM

0 Peggie over 6 years ago in reply to Adam Mc Gaffin

Intellectual 445 points

hallo,

I connect the TPS65987D+HD3SS460 like this.
How to use the TPS6598X Application Customization 5.13 configuration, and how to configure GPIO.
I want to input the DP signal through the Type-C port and output the DP signal to my display device through the HD3SS460.

0 Peggie over 6 years ago in reply to Peggie

Intellectual 445 points

And，Can you provide a standard code?

0 Adam Mc Gaffin over 6 years ago in reply to Peggie

TI__Mastermind 30000 points

Hello,

You would use the GUI to create a configuration file for our device that meets your system needs. You would then program this to an external flash. You can follow the following app note on how to use the configuration tool. www.ti.com/.../slvub60a.pdf

The DP signal would not pass through the PD controller at all, but only the MUX. You would control the orientation of the MUX using a plug orientation GPIO event on the PD controller
