DP83TC811S-Q1: PMA test issue

Dongbao Zhou

Part Number: DP83TC811S-Q1
Other Parts Discussed in Thread: DP83TC811EVM

hello,

I use dp83tc811evm to do PMA test, test mode 1 is enabled by setting:

begin
// enabling test mode 1
000D 0001
000E 0836
000D 4001
000E 2000
end

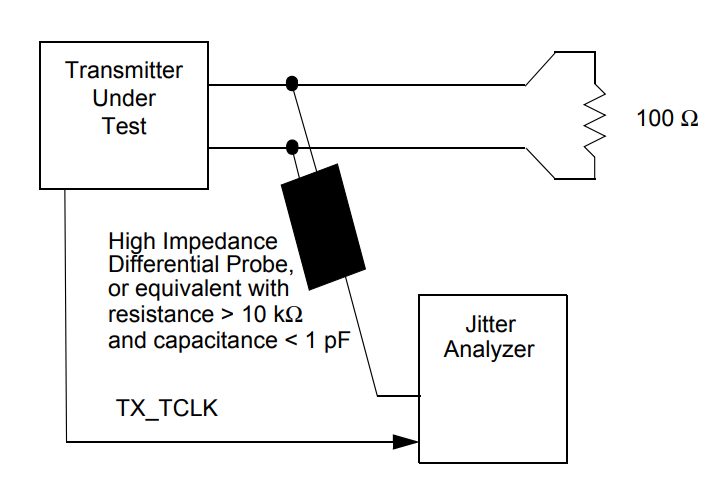

A 100ohm resistor is soldered between the connector pins (TRDP, TRD-), oscilloscope and differential probe are checked without issues. However, i don't see any difference after i enable test mode 1.

Could you let me know the possible reason and how to solve it? Thanks.

Dongbao

over 6 years ago

0 Geet Modi over 6 years ago

TI__Mastermind 26320 points

Hi,

How is your board setup ? Have you connected the Board to Tek Test Fixture as shown in user guide ? Can you share picture

Regards,

Geet

0 Dongbao Zhou over 6 years ago in reply to Geet Modi

TI__Expert 4170 points

Hi Geet,

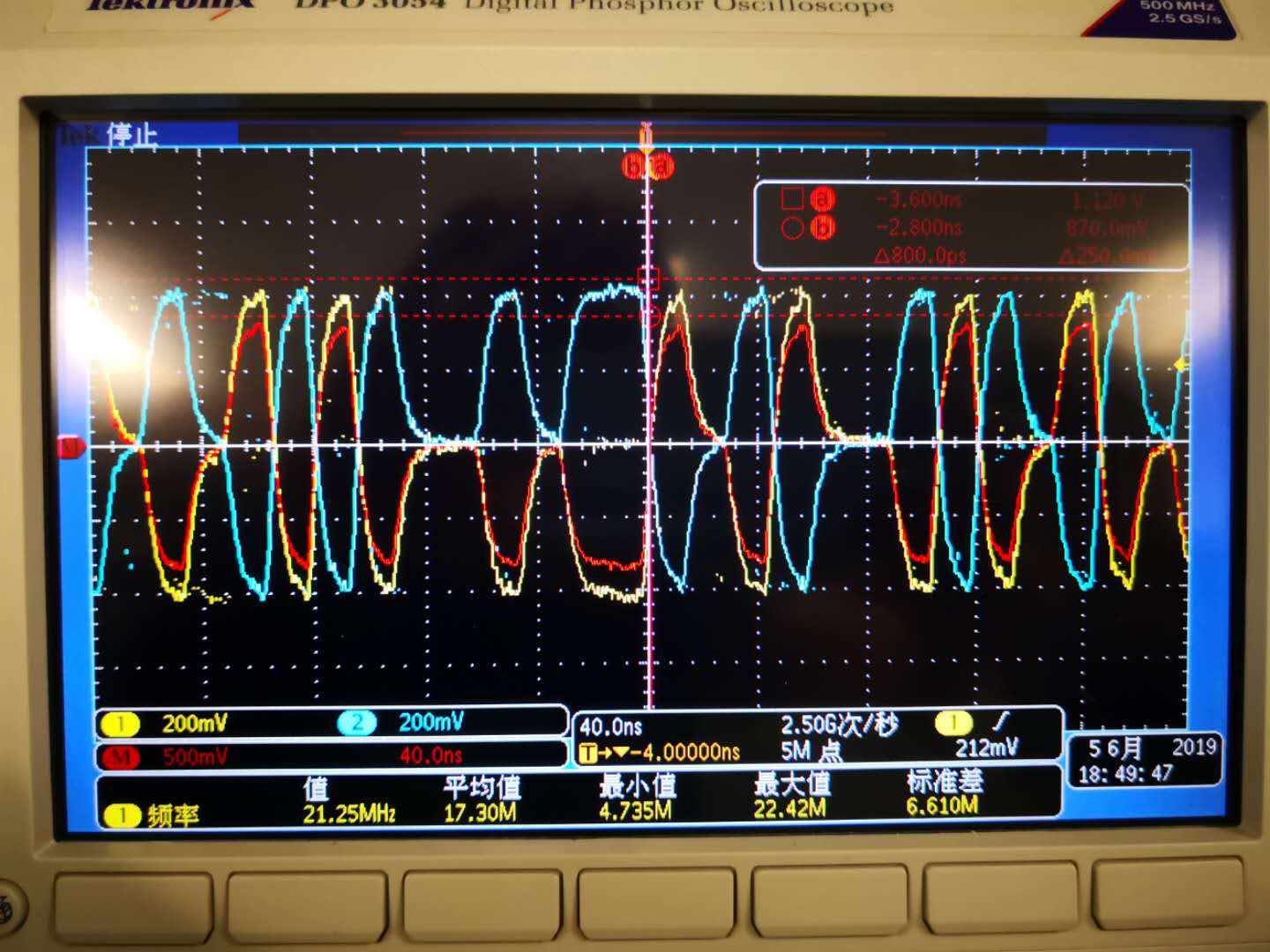

The EVM is in the default setup, a high-speed differential probe is used (single-end probe is also tried, i don't see any difference). No TX_TCLK connection with scope, my purpose is to make sure the test mode 1 is enabled.

I don't have Tek Test Fixture in hand.

Dongbao

0 Dongbao Zhou over 6 years ago in reply to Geet Modi

TI__Expert 4170 points

hello,

Any feedback about my questions? Thanks.

Dongbao

0 Geet Modi over 6 years ago in reply to Dongbao Zhou

TI__Mastermind 26320 points

Hi,

Please try following:

Extended Register = Enable

Regards,

Geet

0 Geet Modi over 6 years ago in reply to Geet Modi

TI__Mastermind 26320 points

Hi,

I am closing this thread. Incase you need further assistance, kindly open new thread and provide references to this thread.

Regards,
Geet
