DS90UB940-Q1: Reset chip

Kevin Xiong

Hi,

I use DS90UB940 as Deserializer and DS90UB925 as Serializer. The product is automotive MP5. Sometimes the screen is black. At the same time, I set this bit, DIGITAL RESET1. The screen returned normal. Could you please tell what's the possible reason to cause the DS90UB940 not working?

Thanks.

Kevin Xiong

over 6 years ago

0 Steven(Shenzhen) Shi over 6 years ago

TI__Mastermind 30515 points

Kevin,

we need understand your issue more clearly:

1. what is the video format in your case?

2. how the back screen is generated? how frequent?

3. when the panel becomes black, can you test the 940 and 925's internal pattern respectively?

regards,

Steven

0 Kevin Xiong over 6 years ago in reply to Steven(Shenzhen) Shi

Expert 2340 points

Hi Steven,

Thank you for your response.

1. The Video format is RGB

2. The back screen is generated randomly.

3. Tested the internal pattern. The result is the same.

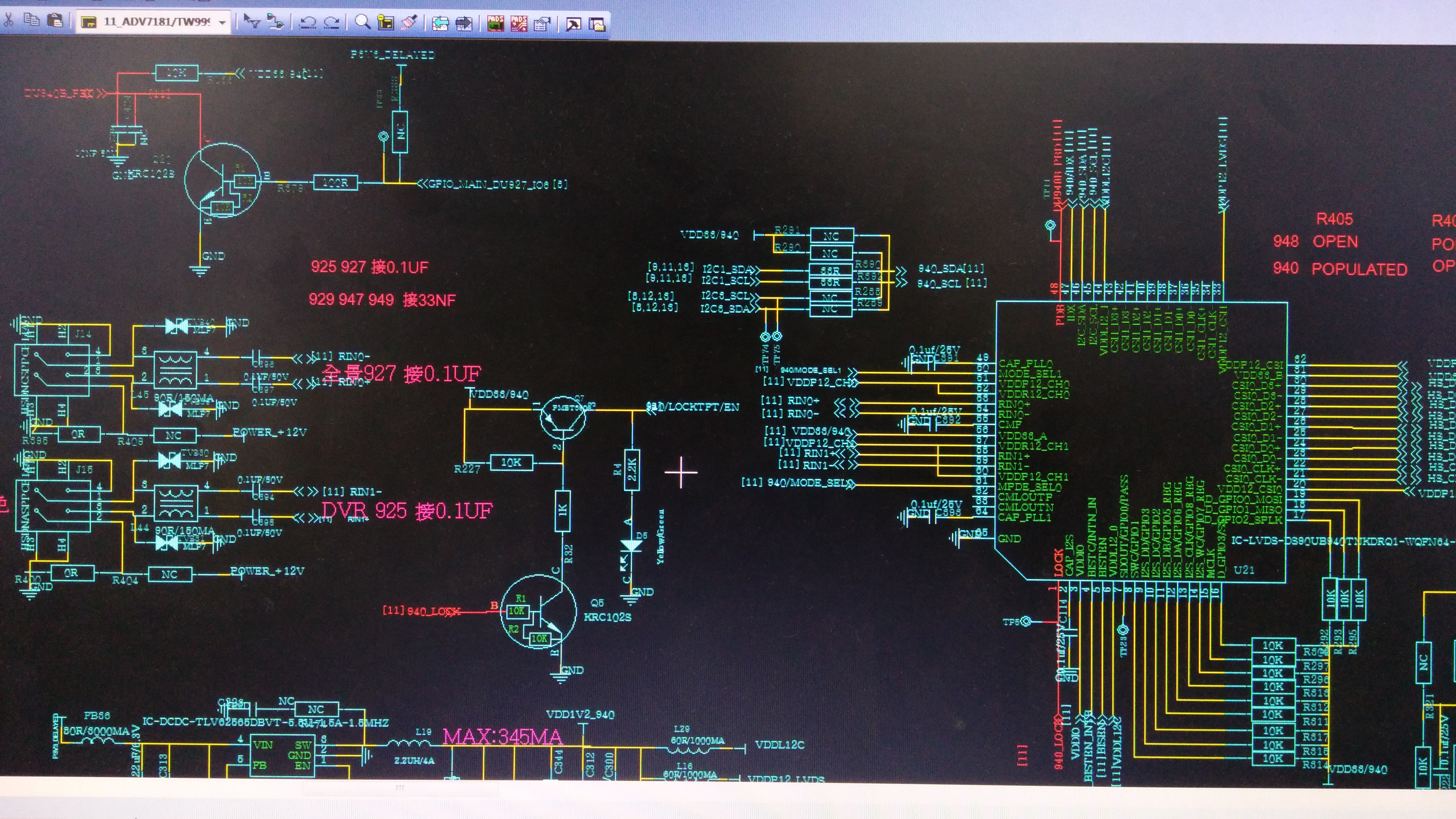

The resent experiment shows that this issue is related to MP5 including DS90UB940. Could you please help review the schematic for me as attachment? Appreciated!!

Thanks.

Kevin Xiong

0 Steven(Shenzhen) Shi over 6 years ago in reply to Kevin Xiong

TI__Mastermind 30515 points

what is the MP5? is it one board with 940 inside?

regarding the sch., it doesn't see any issue. one question is that: what is the failure rate in your test?

best regards,

Steven
