TUSB4020BI: GANGED/SMBA2/HS_UP pin

K.Yaita

Part Number: TUSB4020BI

Hi Team,

The datasheet shows GANGED/SMBA2/HS_UP pin sets the value of the SMBus slave address bit 2 when SMBus mode is enabled.

So, I believe "SMBus slave address bits 2 and 3 are always 1 for the TUSB4020BI." is typo and "SMBus slave address bits 3 are always 1 for the TUSB4020BI." is correct.
Is my understanding correct?

Best Regards,
Yaita

over 6 years ago

0 Malik Barton57 over 6 years ago

TI__Guru 64326 points

Hi,

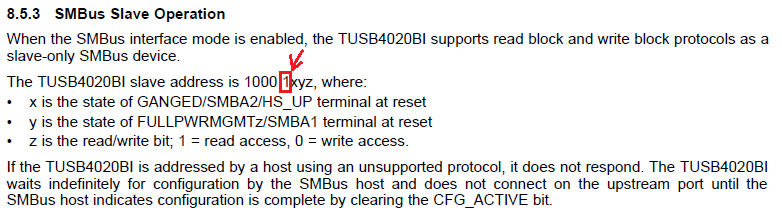

Correct, this is a typo and should state "SMBus slave address bits 3 are always 1 for the TUSB4020BI." Please see section 8.5.3 SMBus Slave Operation to see that SMBus slave address bit 3 (Z) is read write access and is always in read mode for TUSB4020BI.

0 K.Yaita over 6 years ago in reply to Malik Barton57

Guru 29720 points

Hi Marik-san,

Thank you for your kind support.

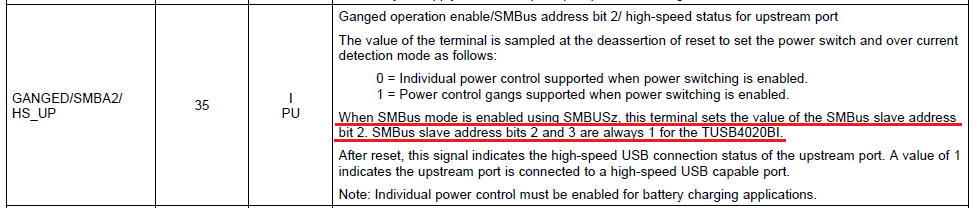

I believe SMBus slave address bit 3 is the following red part.
What do you think about it?

Best Regards,
Yaita

0 Malik Barton57 over 6 years ago in reply to K.Yaita

TI__Guru 64326 points

Hi,

My apologies you are correct.
