SN65DP159: DDC connect to SCA_CTL

Kai Hsiao

Guru 12675 points

Part Number: SN65DP159

Hi Sir

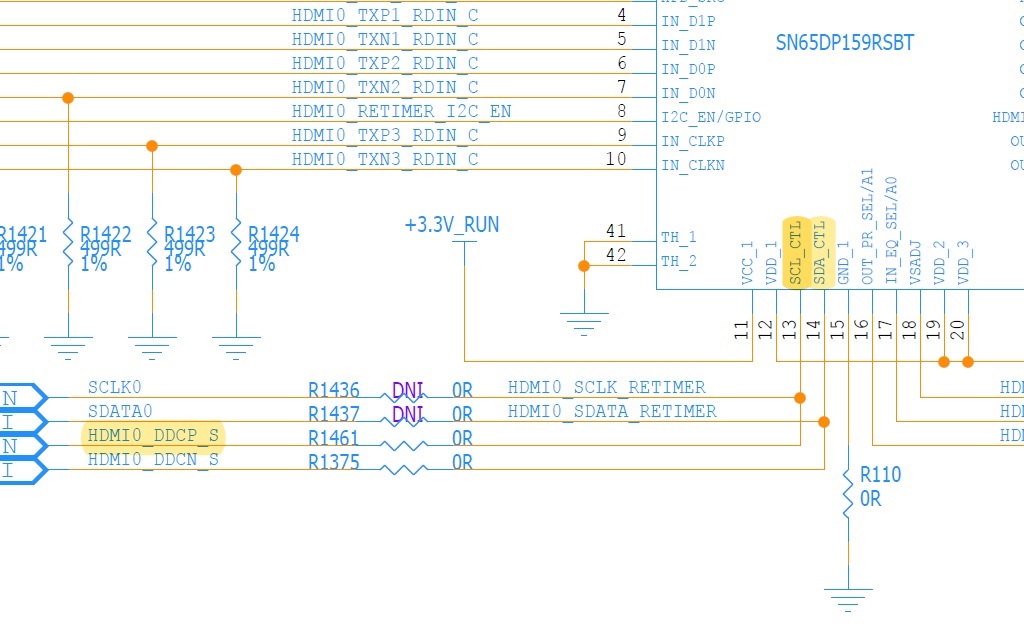

Below schematic is from AMD platform reference design and used for 4k/2k/60 application

Reference design use external FET to do DDC level shift

May I know why reference design use DDC to connect with SDA / SCL_CTL of DP159

Do you know the reason ?

0 David (ASIC) Liu over 6 years ago

Kai

SCL_CTL and SDA_CTL are used for the configuration of DP159 internal registers, they should not be connected to the DDC bus.

Thanks

David

0 Kai Hsiao over 6 years ago in reply to David (ASIC) Liu

Guru 12675 points

Hi David

Thanks for your reply

It's very strange ,AMD reference design use I2C mode and connect DDC channel to SCL_CTL

0 David (ASIC) Liu over 6 years ago in reply to Kai Hsiao

Kai

I will have to take a look at AMD datasheet to understand why this connection is being made in their reference design.

Thanks

David
