THVD1450: A B connection

Shu-Cheng LIN

Part Number: THVD1450

Hi Sirs,

Sorry to bother you.

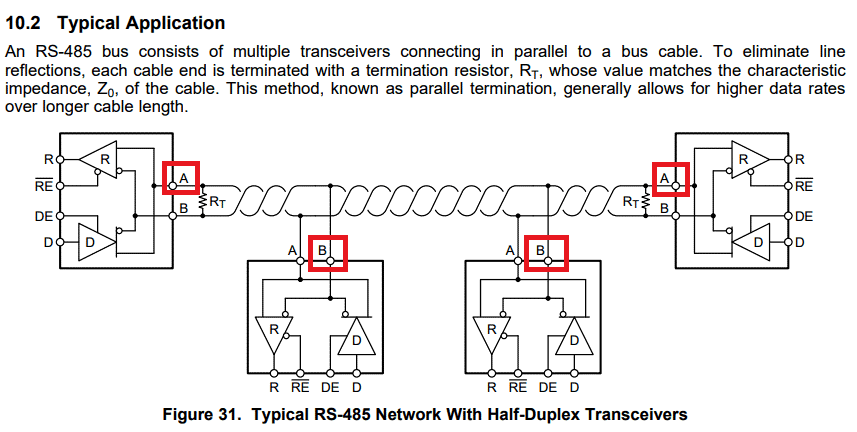

In THVD1450DR datasheet, we found transceiver output A connection is not consistent (A or B).
Could you help to confirm the connection is A-to-A and B-to-B?

over 6 years ago

0 Miguel Robertson over 6 years ago

TI__Guru 62920 points

Hi Shu-Cheng,

Sorry for the confusion. Yes, connections should typically be made A-to-A and B-to-B so that the differential signaling maintains the proper polarity. Thank you for pointing out this error.

Max
