HD3SS3220: Absolute maximum ratings of DIR pin

K.Yaita

Part Number: HD3SS3220

Hi Team,

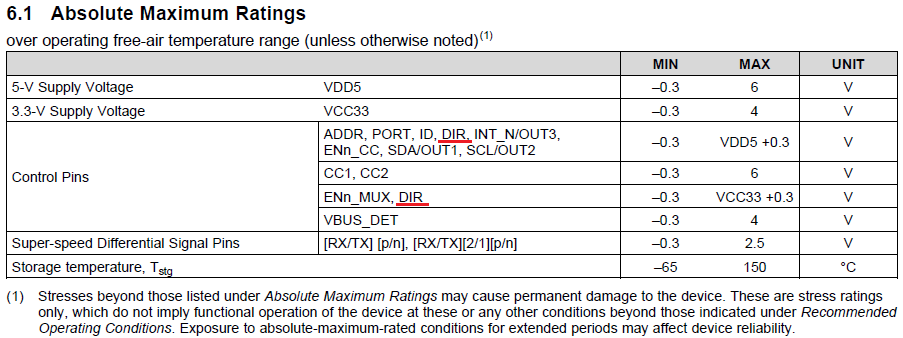

There is two DIR pin description in Absolute Maximum Ratings.
Which is correct?

I believe "VCC5 + 0.3V" is correct because of the following.
Is my understanding correct?
----------------------------------------------------------------

----------------------------------------------------------------

Best Regards,
Yaita

over 6 years ago

0 Brian Zhou over 6 years ago

TI__Guru*** 144645 points

DIR is 3.3v

0 K.Yaita over 6 years ago in reply to Brian Zhou

Guru 29720 points

Hi Brian-san,

Thank you for your reply.

Is it true?

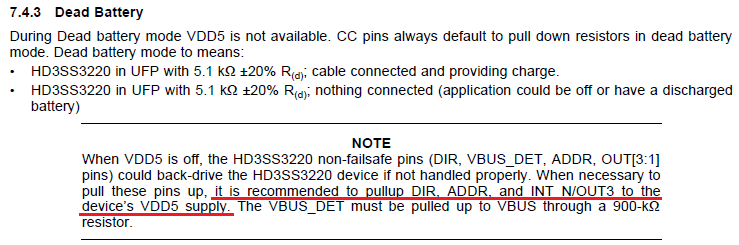

The datasheet shows DIR is recommended to pull-up to VDD5.
How do we consider the following?

Best Regards,
Yaita

0 Brian Zhou over 6 years ago in reply to K.Yaita

TI__Guru*** 144645 points

we confirmed from designer it's 3.3v. we will update datasheet as soon as we can.

0 K.Yaita over 6 years ago in reply to Brian Zhou

Guru 29720 points

Hi Brian-san,

I understand the following is typo and DIR pin should be pull-up to VCC33 with 200KΩ.
Is my understanding correct?

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29720 points

Should DIR pin be pull-up to VCC33 with 200KΩ?
I would like to confirm just in case..

Best Regards,
Yaita

0 Brian Zhou over 6 years ago in reply to K.Yaita

TI__Guru*** 144645 points

yes
