TPS65988DJ: UVP judge point when VBUS transit from 5V to 20V

Tiger Yeh

Part Number: TPS65988DJ
Other Parts Discussed in Thread: TPS65988

Hi~

As you know the PD adapter’s voltage was variable , when the PD adapter plugged, the PD adapter voltage will change from 5V to 20V. May I know

1. Will PD controller active UVP or/and OVP during transition?

2. When is the judged point when PD controller start to gate UVP or/and UVP?

Thanks and BR,

Tiger

over 6 years ago

0 Adam Mc Gaffin over 6 years ago

TI__Mastermind 30000 points

Hello Tiger,

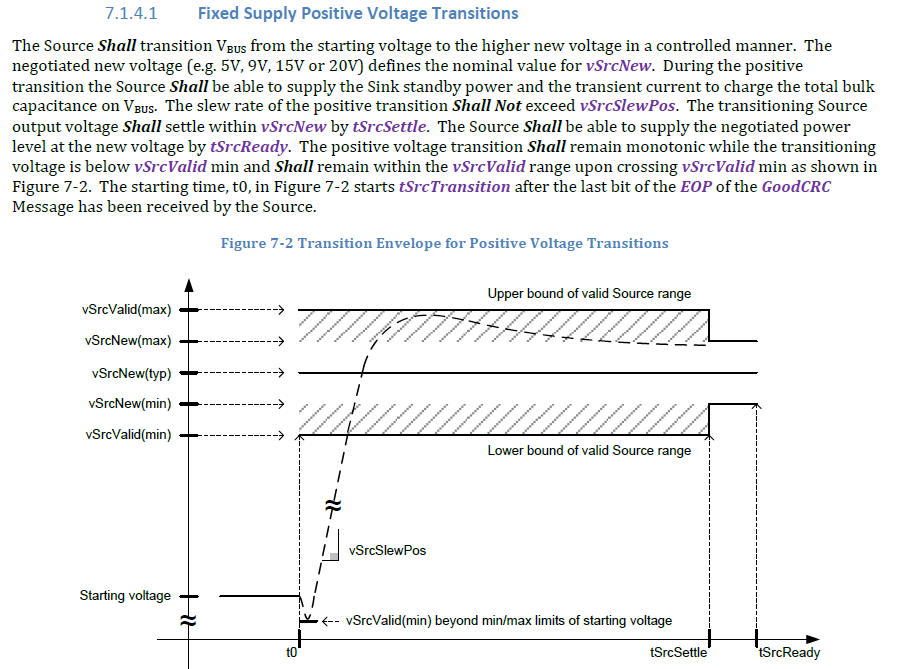

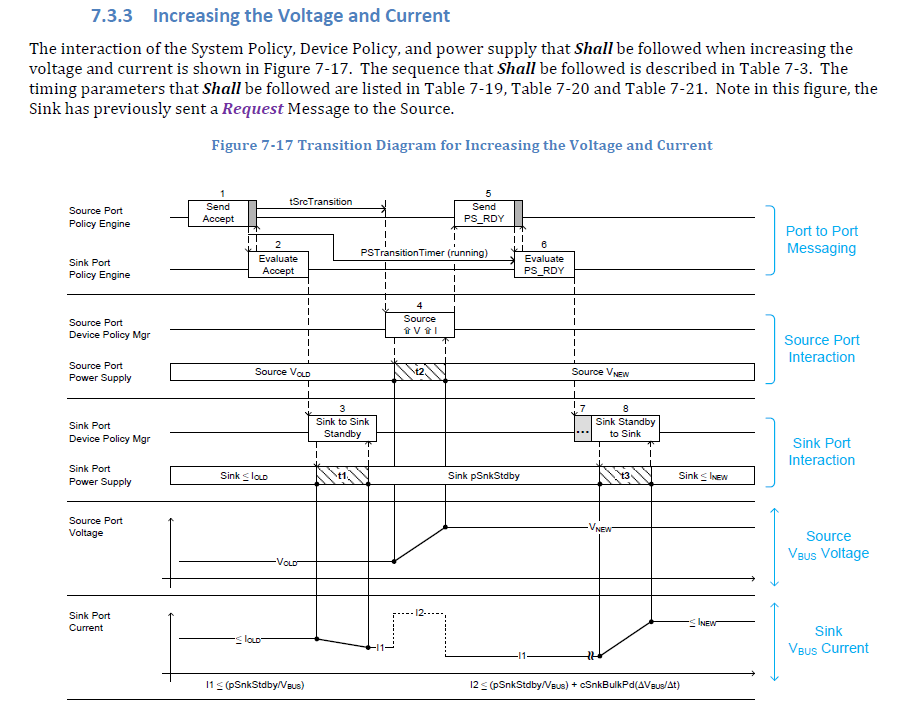

I would recommend reading through the Type-C PD spec to get a better understanding of the PD negotiation/transition. Here is a capture found from the Type-C spec.

Hope these captures help answer your question.

0 Tiger Yeh over 6 years ago in reply to Adam Mc Gaffin

TI__Expert 5515 points

Thanks Adam.

This is PD spec for its transition behavior.

However, my question is how TPS65988 monitor and judge UVP.

UVP and OVP are not normal behavior in the spec.

Is the UVP response after tSrcSettle?

0 Adam Mc Gaffin over 6 years ago in reply to Tiger Yeh

TI__Mastermind 30000 points

Hi Tiger,

Yes, after tSrcSettle, if the voltage is below the threshold programmed within the PD controller, then a UVP event will occur.
