DS90UB948-Q1: What does the SWAP mean?

Sherry Liang

Genius 10255 points

Part Number: DS90UB948-Q1

Dear team,

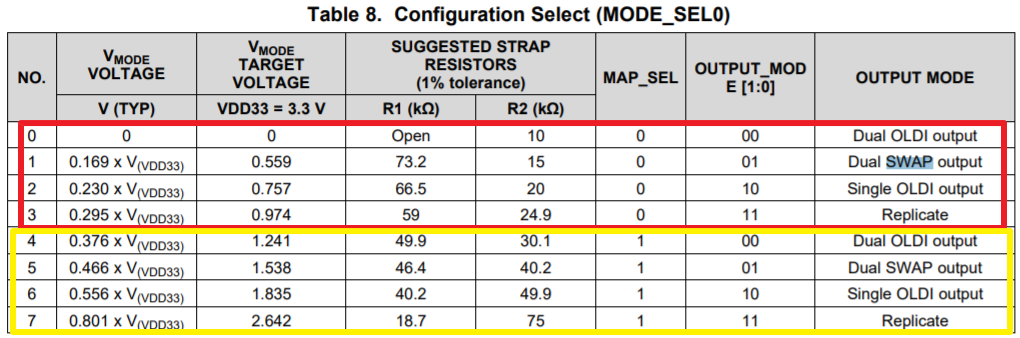

Could you please tell me what does the SWAP mean? In addition, is there any difference when the MAP_SEL=0 or 1?

Thanks & Best Regards,

Sherry

0 Casey McCrea over 6 years ago

Hello Sherry,

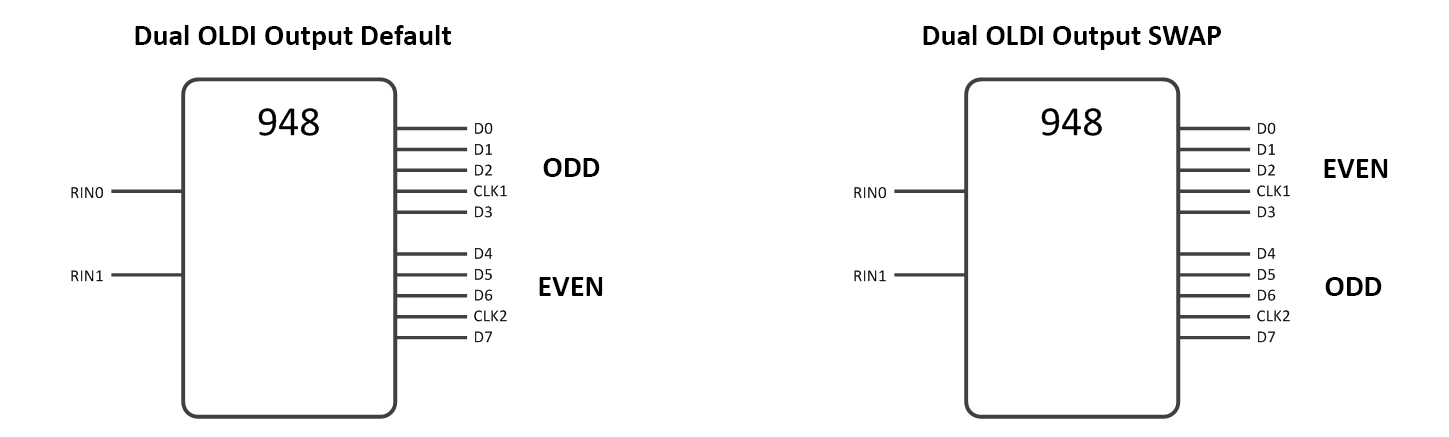

SWAP means the D0-3 and D4-7 channels are flipped like this:

We will be adding this clarification in the next datasheet update.

Thanks,

Casey

0 Sherry Liang over 6 years ago in reply to Casey McCrea

Hi Casey,

Got it! Thank you very much！

Thanks & Best Regards,

Sherry
