DS90UB926Q-Q1: Interfacing with DS90UB947 deserializer over single lane FPD-Link

Bart

Part Number: DS90UB926Q-Q1
Other Parts Discussed in Thread: DS90UB928Q-Q1,

Hello,

I have few questions regarding the ds90UB926 deserializer.
We have previously worked with DS90UB947->DS90UB948 ser-deser using 2-lane STP.

We now have rgb888 parallel 24-bit display, which we would like to interface with DS90UB926 deser.

Can we use ds90ub947 deser on the ICU side, to interface it with ds90ub926 over single-lane FPD-link?
1. If yes, what needs to be configured to do so?

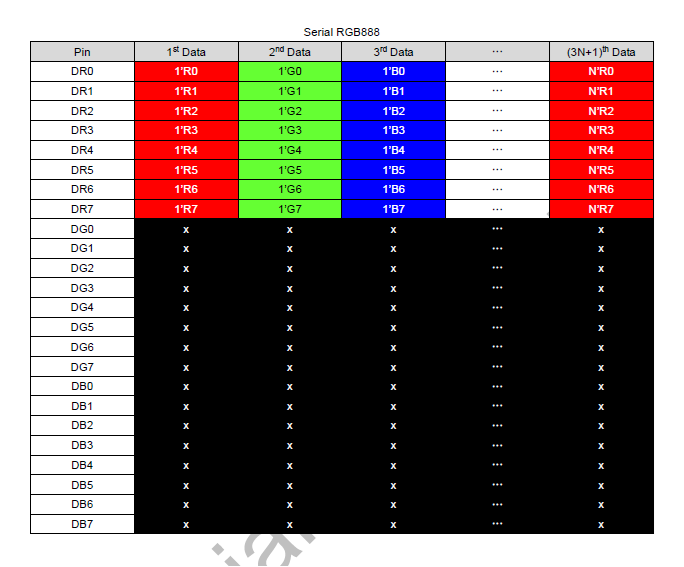

Can ds90ub926 support serial RGB888? (I am providing pictures to further clarify difference between serial and parallel RGB888).

Thank you.

over 6 years ago

0 Steven(Shenzhen) Shi over 6 years ago

TI__Mastermind 30515 points

Hi Bart,

Yes, UB926 can be linked with UB947 automatically with pin strap setting (mode_sel).

1. Pls check ub947 d/s, the backward compatibility limitation is UB926 only can support up to 85MHz PCLK, pls make UB947 compatible with it.

7.3.12 Backward Compatibility
This FPD-Link III serializer is backward compatible to the DS90UB926Q-Q1 and DS90UB928Q-Q1 for OpenLDI
clock frequencies ranging from 25 MHz to 85 MHz. Backward compatibility does not need to be enabled. When
paired with a backward compatible device, the serializer will auto-detect to 1-lane FPD-Link III on the primary
channel (DOUT0±).

2. NO, UB926 can't support the serial RGB888 mode.

best regards,

Steven

0 Bart over 6 years ago in reply to Steven(Shenzhen) Shi

TI__Expert 6460 points

Thanks Steven.

Which ser-deser combination can support RGB888 serial?

0 Steven(Shenzhen) Shi over 6 years ago in reply to Bart

TI__Mastermind 30515 points

Bart,

sorry we have no part for serial RGB888. May I know which part can accept the serial RGB input in your display system? thanks.

best regards,

Steven

0 Steven(Shenzhen) Shi over 6 years ago in reply to Steven(Shenzhen) Shi

TI__Mastermind 30515 points

also, for the serial RGB888, the PCLK would become x3, it is too high for the parallel I/f and would introduce the EMI/EMC issue. so generally we don't see the serial RGB888. But we have OpenLDI video I/f solution, you can refer to ds90UB924.

regards,

Steven

0 Bart over 5 years ago in reply to Steven(Shenzhen) Shi

TI__Expert 6460 points

Hi Steven,

Currently our small circular display accepts RGB888 serial directly from processor.
Is there any other solution except deser? Maybe some bridge?

I shared with you the specs of the display offline.

Regards, Bart

0 Steven(Shenzhen) Shi over 5 years ago in reply to Bart

TI__Mastermind 30515 points

Bart,

sorry we don't see this device with serial RGB888 output. maybe you can use the CPLD/PFGA as I/f bridge.

regards,

Steven
