LMH0340: transmit raw ADC LVDS data

min hu

Part Number: LMH0340
Other Parts Discussed in Thread: LMH0341, DS32EL0421, DS32EL0124

Hi，

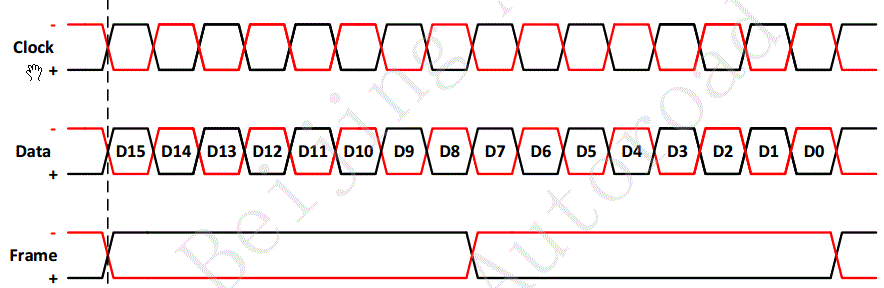

I would like to transmit raw ADC LVDS data through cable for about 5 meters,ADC output data is 4 channel LVDS with one FRAME,output clock is 200MHz DDR:

I need to convert parallel LVDS data to serial to easy connecting，is LMH0340/LMH0341 a proper choice ?

over 5 years ago

0 min hu over 5 years ago

Intellectual 990 points

I am also looking into DS32EL0421,the 5 parallel input is actually 4 with 'data[4]' used for data_valid indication.

0 Nasser Mohammadi over 5 years ago in reply to min hu

TI__Guru* 93670 points

Hi Min,

Please note LMH0340 lock to SDI data rates only. DS32EL0421 and DS32EL0124 are a better choice for this application.

Regards,,, Nasser

0 min hu over 5 years ago in reply to Nasser Mohammadi

Intellectual 990 points

Hi Nasser,

Thanks for your reply.

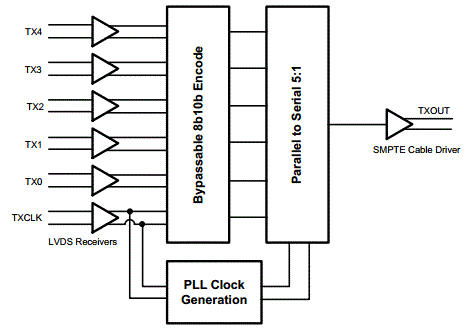

LMH0340 lock to SDI data rates only,means that those SDI Serializer chips can only be used under like SMPTE standards?Is it because of the limitation of PLL frequency？From the chip architecture, it only converts parallel data into serial data with 8b10b encode,No data format and data rate restriction.

and also,LMH0340 and DS32EL** have almost the same architecture.

Best Regards

0 Nasser Mohammadi over 5 years ago in reply to min hu

TI__Guru* 93670 points

Hi Min,

1). LMH0340 VCO has been constrained to the SMPTE data rates only.

2). LMH0340/LMH0341 use the same die as DS32EL0421/0124.

Regards,, Nasser
