DP83848C: CRS_DV overshoot &undershoot

Kailyn Chen

Part Number: DP83848C

Hello，

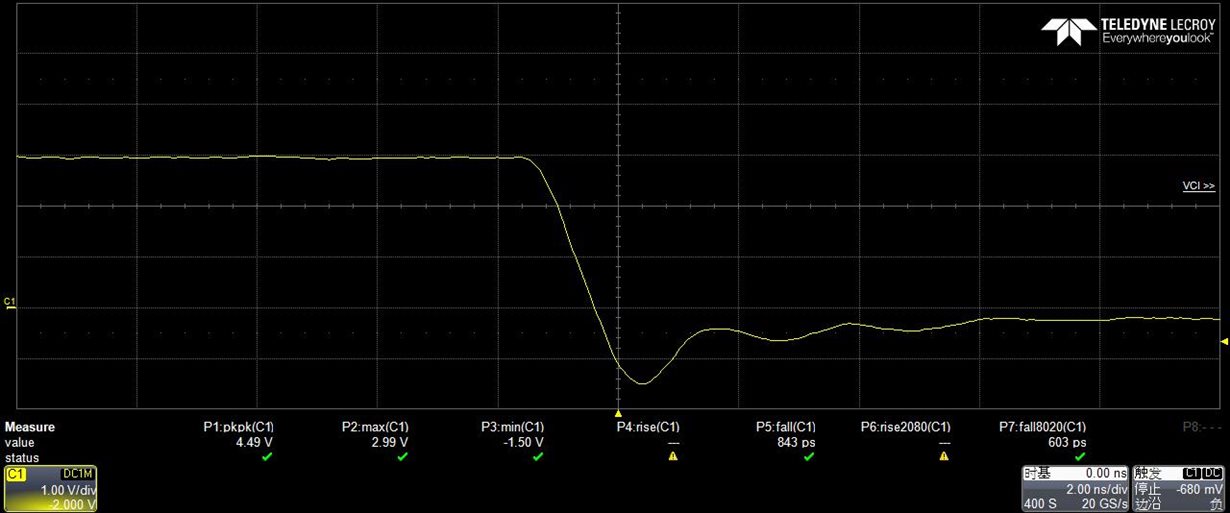

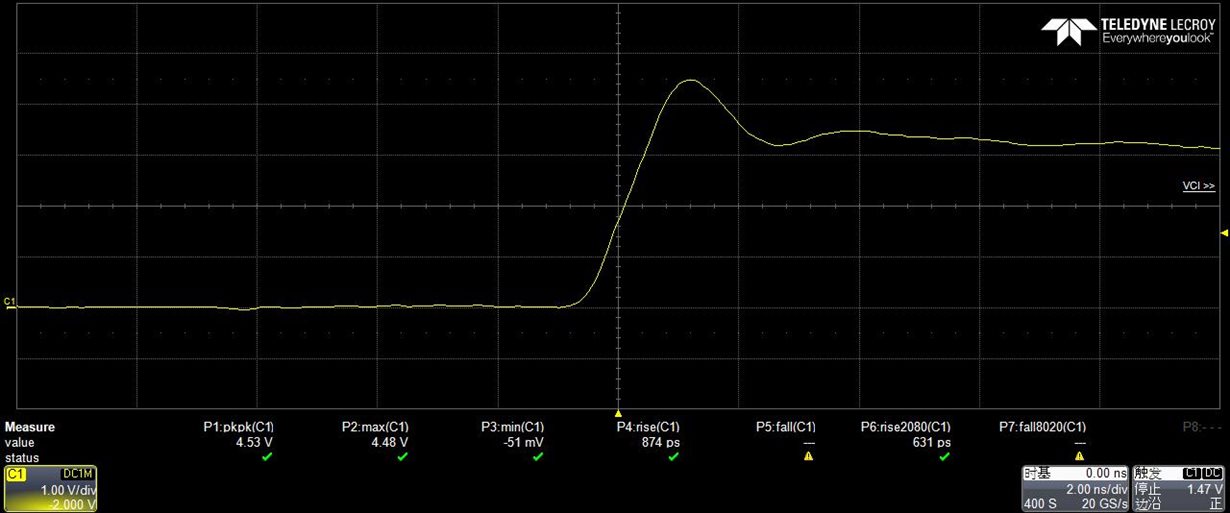

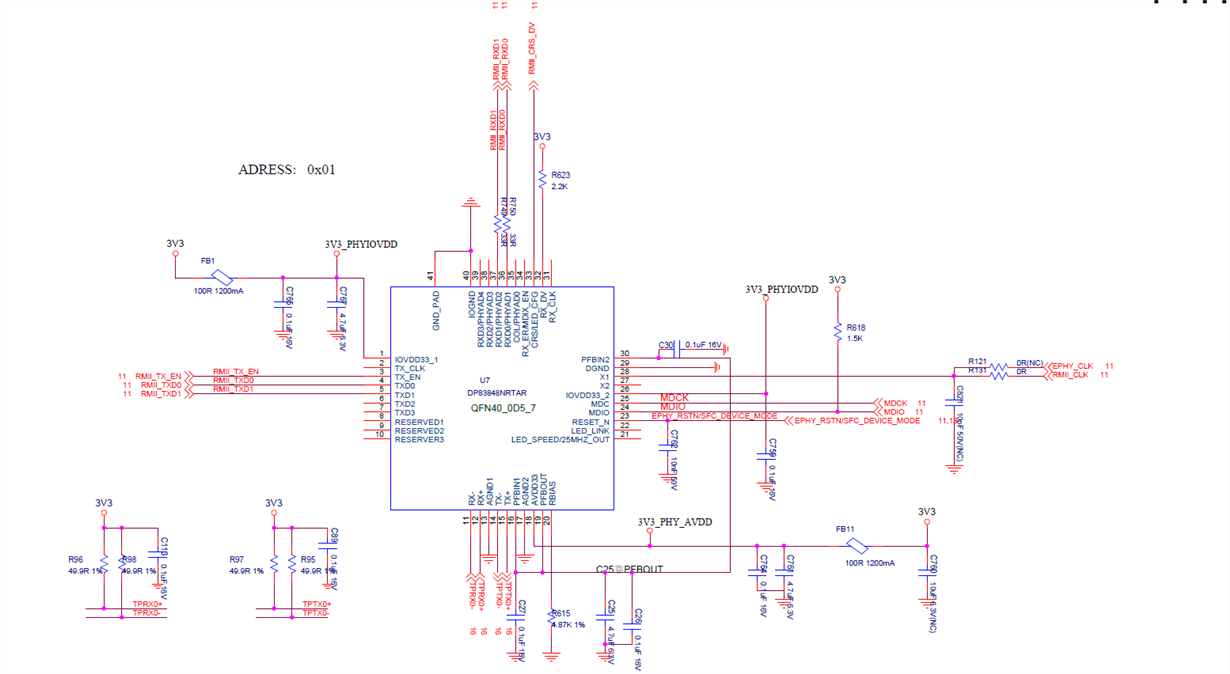

Ours customer who used DP83848NRTAR met a question about the CRS_DV signal。He tested at the CPU side and the overshoot &undershoot is big, the highest level got to 4.5V and the lowest level was -1.5V. Below is the schematic and waveform, he wanted to know if he could use the software to improve it.

Best regards

kailyn

over 5 years ago

0 Nikhil Menon over 5 years ago

TI__Genius 11725 points

Hi Kailyn,

Can you add a 33 ohm series resistor to the CRS_DV pin?

Thank you,

Nikhil

0 Adam shi over 5 years ago in reply to Nikhil Menon

Prodigy 10 points

Hi Nikhil,

yes，i have added a 49.9Ω series resistor to the CRS_DV pin, and the waveform is ok. but i want to know if the PHY's drive capability can be adjusted through the software?

Thank you,

Adam

0 Nikhil Menon over 5 years ago in reply to Adam shi

TI__Genius 11725 points

Hi Adam,

The DP83848C does not have a adjustable drive capability through software.

Thank you,

Nikhil
