TCAN1043-Q1: CAN bus Ground shift test

WOO YOUNG JANG

Part Number: TCAN1043-Q1
Other Parts Discussed in Thread: TCAN1043

I want to Ground shift test of can bus

Can you share me the connection diagram for the test?

How can I make a groung shift condition?

- When the DUT reaches the ground offset 2V, it must maintain normal communication behavior, and can correctly send and receive bus messages

- When the DUT reaches the ground offset of - 2V, it must maintain normal communication behavior and can correctly send and receive bus messages

I see similar results in the below link

www.ti.com/.../slla337.pdf

over 5 years ago

0 Miguel Robertson over 5 years ago

TI__Guru 62920 points

Hello,

You would need a DUT whose ground reference is independent (i.e., not directly connected to earth or otherwise shared with the monitoring equipment). Then, you could simply place a DC power supply (set to 2 V) between the grounds of the monitoring equipment and the DUT. The DC power supply should also support (+) and (-) terminals that do not directly connect to earth so that the power supply can be connected with either polarity (so that both +2 V and -2 V offsets can be supported). Please let me know if this is not clear or if you have further questions.

Regards,
Max

0 WOO YOUNG JANG over 5 years ago in reply to Miguel Robertson

Prodigy 50 points

Thank you for your answer.

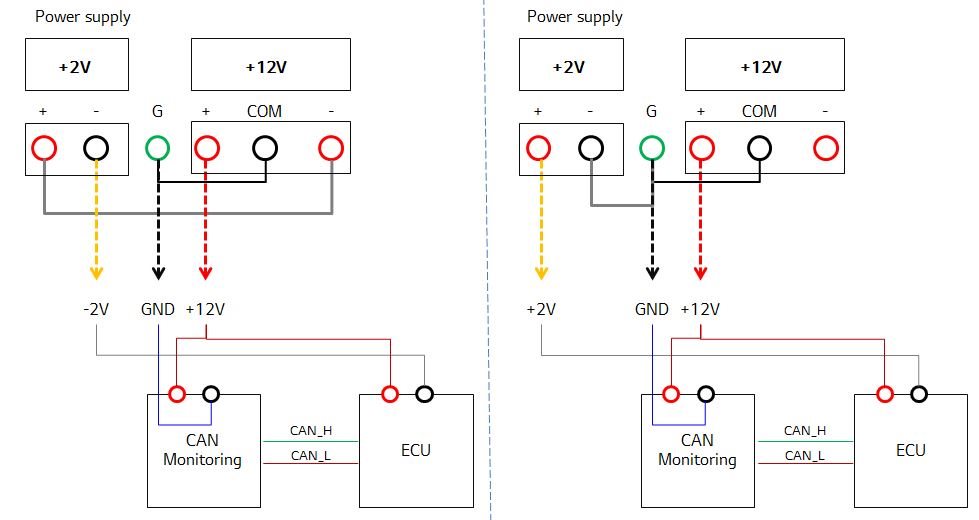

Please check below block diagram.

0 WOO YOUNG JANG over 5 years ago in reply to WOO YOUNG JANG

Prodigy 50 points

0 Eric Schott1 over 5 years ago in reply to WOO YOUNG JANG

TI__Guru 53575 points

Hi,

Thank you for your patience. I will reply with a suggested test layout later today.

Regards,

Eric

0 Eric Schott1 over 5 years ago in reply to WOO YOUNG JANG

TI__Guru 53575 points

Hi,

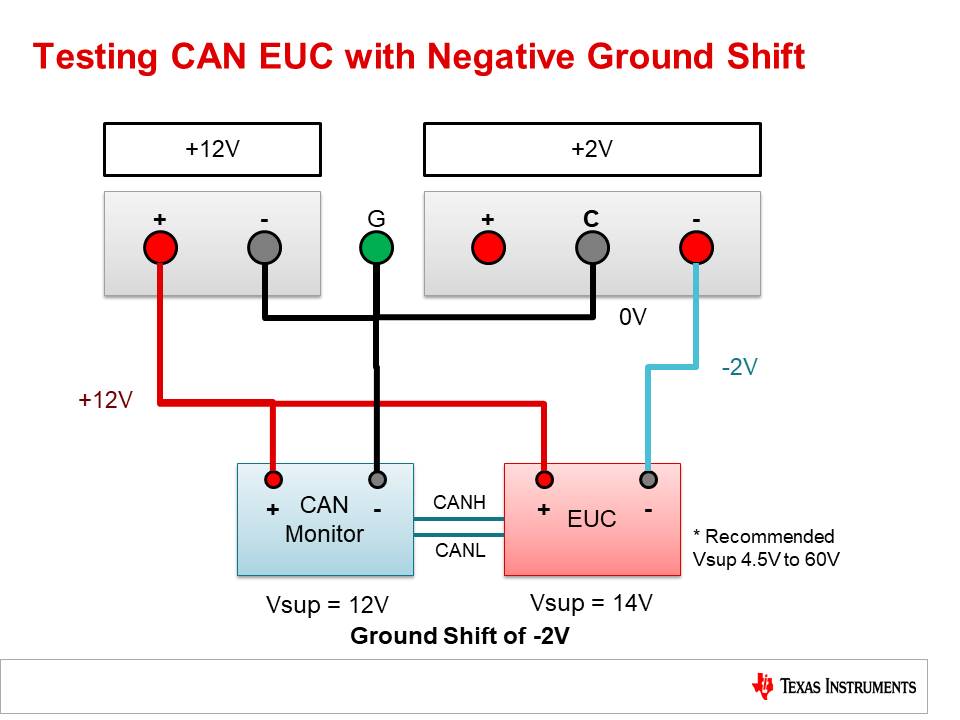

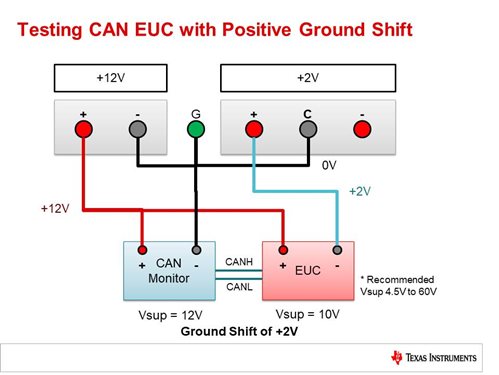

I've created a visual guide to what Max described above. The ground offset will be provided by the second power supply while both devices are powered by the same 12V source. In these tests, Vsup of the EUC will vary because we are moving its ground reference. Vsup will remain in the recommended operating range of TCAN1043. If this difference is an issue with the tests, let me know and I can suggest another configuration.

Let me know if you have any further questions or would like clarification on the attached images.

Regards,

Eric
