TUSB211: Signal variance (jitter) in TUSB211 eye-diagram

TUSB211: TUSB211: The improvement of eye diagram was not obvious

cyan zhou
Expert 1500 points
Part Number: TUSB211

Hi TI Expert,

Now we use TUSB211 on USB 2.0, but The improvement of eye diagram was not obvious.

The trouble is how can we get a obvious result.

This is circuit diagram:

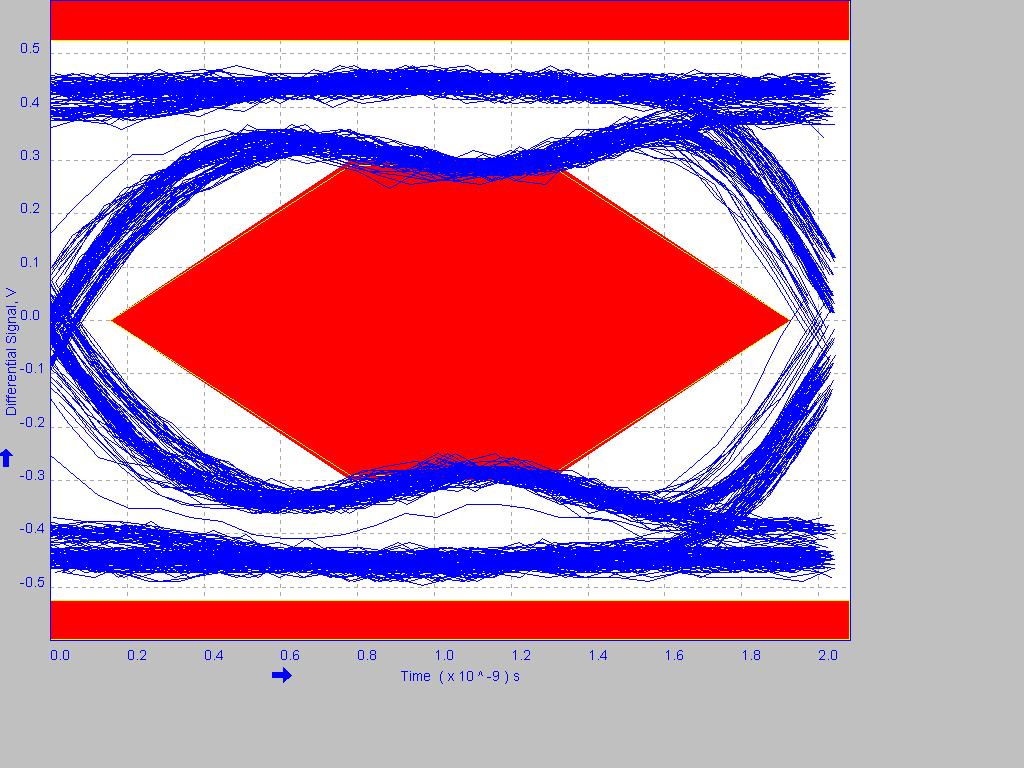

and this is eye diagram  use TUSB211:

and this is eye diagram non-use TUSB211:

Thanks, and wait for your reply.

  • 0
    TI__Guru 60870 points

    Hello Cyan,

    Response will be delayed due to holidays.

    Regards,

    JMMN

  • 0 in reply to JMMN
    TI__Guru 64326 points

    Hi Cyan,
