TCA6418E: Question about register mapping

user4976860

Part Number: TCA6418E

Hello TI support team,

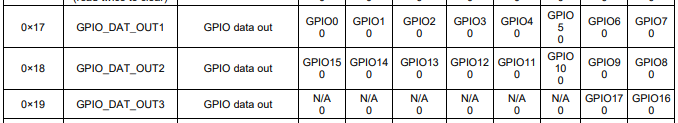

I find the register bit mapping of GPIO0-7 is inverse to its register bit alignment.
Is this correct?

0 Eric Schott1 over 5 years ago

Hi,

Yes, this figure is accurate. The bit mapping is due to this device sharing some internal structure with similar devices.

Let me know if you have any more questions.

Regards,

Eric

0 user4976860 over 5 years ago in reply to Eric Schott1

Hi Eric,

Noted with thank you.
