DS90UB948-Q1: GPIO remote access control of DES , by Serializer TI 941

Minwoo Song

Intellectual 990 points

Part Number: DS90UB948-Q1
Other Parts Discussed in Thread: ALP

Hi,

I have a question for remote GPIO control on DES 948.

There is the SER TI 941 w/ Host IC and, remote DES is TI 948.

In this configuration, can I control the GPIO of DES by serializer TI 941 setting ?

How can I control GPIO on DES and what is the register related to this ?

let me know about example for this.

Thanks.

over 5 years ago

0 Aaron Heng over 5 years ago

TI__Mastermind 37220 points

Hi Minwoo,

Yes, You can access GPIO of the deserializer side (948) when you established the link between serailizer and deserlizer. You can access through the ALP on "Remote Register" tab.

Hope this helps.

Aaron

0 Minwoo Song over 5 years ago in reply to Aaron Heng

Intellectual 990 points

Hi Aaron,

Thanks for your reply.

I can find out the related register in ALP.

here is one more question.

in this situation, how can I get the IRQ from slave IC, by serializer 941 ?

is there any example for setting this ?

0 Minwoo Song over 5 years ago in reply to Minwoo Song

Intellectual 990 points

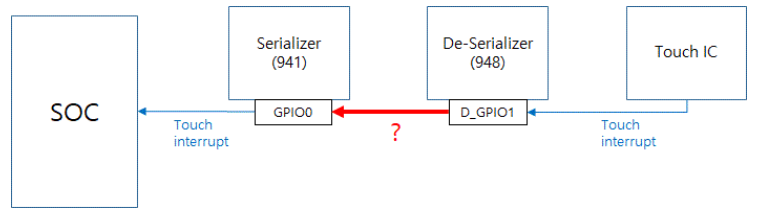

this is realted figure. :

- how can I get the IRQ from slave IC, by serializer 941 ?

- I wonder the setting method in TI 941.

- is there any example for setting this ?

0 Aaron Heng over 5 years ago in reply to Minwoo Song

TI__Mastermind 37220 points

Hi Minwoo,

Let me check if I have any example script that you can use.

Aaron

0 Minwoo Song over 5 years ago in reply to Aaron Heng

Intellectual 990 points

Very thanks Aaron.

If you could send to us, it would be great help,

to develop GPIO-IRQ function.

0 Minwoo Song over 5 years ago in reply to Aaron Heng

Intellectual 990 points

Hi Aaron.

could you check and send the example code to set ?

it will be great helpful to implement our system.

Thanks !

0 Aaron Heng over 5 years ago in reply to Minwoo Song

TI__Mastermind 37220 points

Hi Minwoo,

Enabling the GPIOx is by performing a few click of the register set. Section 8.3.9 GPIO paragraph of 941AS shows how to enabling the register.

Please let me know if you have further questions.

Aaron

0 Minwoo Song over 5 years ago in reply to Aaron Heng

Intellectual 990 points

Hi Aaron,

Always thanks for your answer.

I will check the 8.3.9 GPIO paragraph, and for this,

What is the meaning for 941 AS ? does it mean datasheet ?

Thanks.

0 Aaron Heng over 5 years ago in reply to Minwoo Song

TI__Mastermind 37220 points

Hi Minwoo,

It is just the naming for device. Nothing is specific.

Aaron
