DS160PR410: What's the relation between spec and GUI tuning ?

Oliver Lin

Expert 4465 points

Part Number: DS160PR410

Hi team,

I have a question from the spec and GUI,

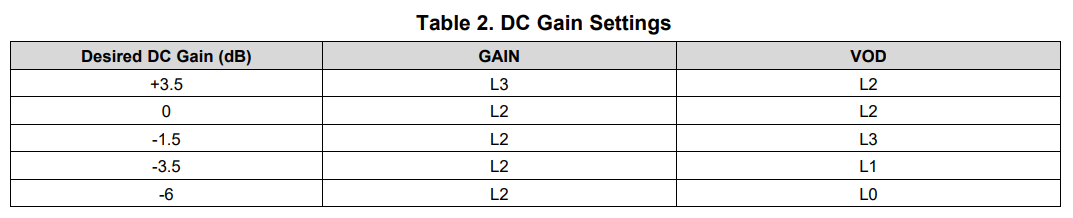

From the spec, it shows the DC gain has 5 levels to select, based on Gain and VOD pin.

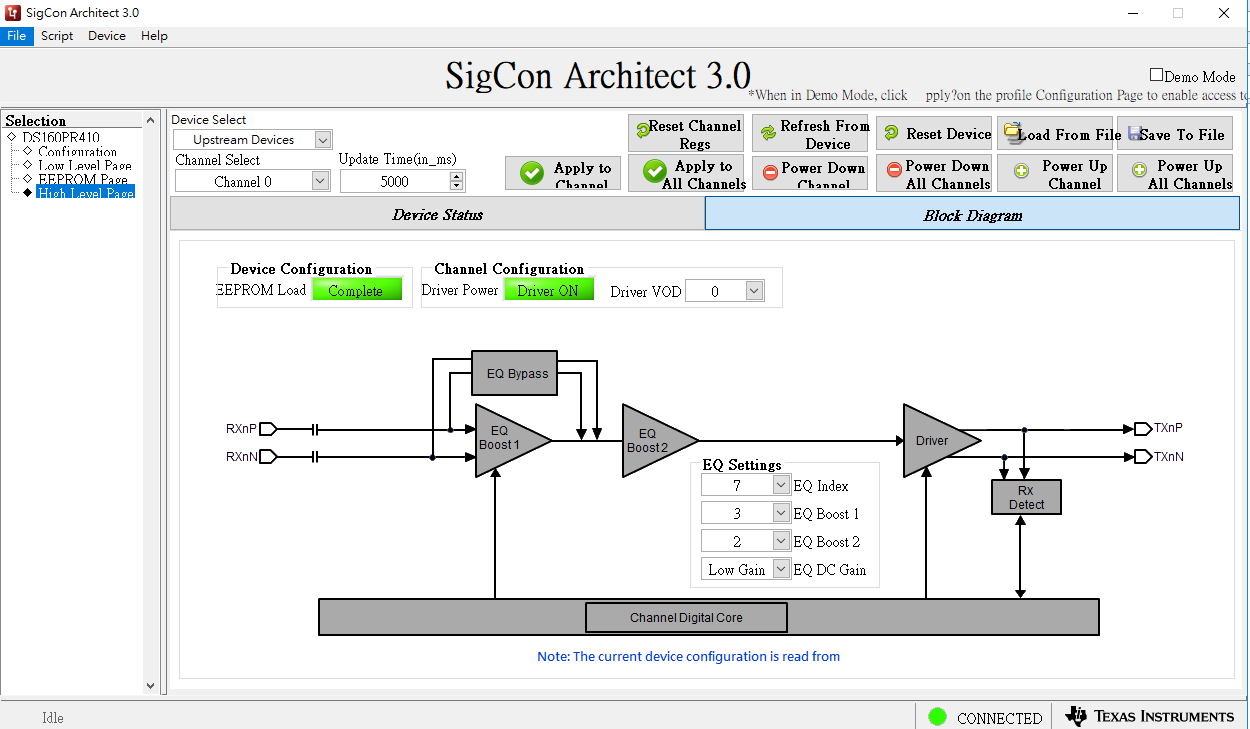

But from the GUI, EQ DC Gain has high and low gain to select and EQ boost 1 & 2 options.

How am I going to combine the spec and the GUI to find out the relation between? Or from the spec is showing under pin strap mode with limited tuning ability, and in GUI has more flexibility for tuning ?

over 5 years ago

0 Lee Sledjeski over 5 years ago

TI__Mastermind 43795 points

In the GUI for GAIN: There is Low/High settings. LOW = L2 and HIGH = L3

In the GUI for VOD: There are 0 - 1 - 2 - 3 settings. 0=L0, 1=L1, 2=L3, 3=L2

Regards,

Lee

0 Davor Glisic over 5 years ago

TI__Expert 8145 points

Hello Oliver,

For the DS160PR410 GUI, there are two EQ DC GAIN settings:

Low Gain: 0 dB (L2 pin setting for the GAIN pin)

High Gain: 3.5 dB (L3 pin setting for the GAIN pin)

There are four VOD settings:

0: -6 dB (L0 pin setting for the VOD pin)

1: -3.5 dB (L1 pin setting for the VOD pin)

2: -1.5 dB (L3 pin setting for the VOD pin)

3: 0 dB (L2 pin setting for the VOD pin)

Regards,

Davor

0 Oliver Lin over 5 years ago in reply to Davor Glisic

TI__Expert 4465 points

Hello team,

Thanks for your explanation.!
