TPS65988DJ: TPS65988DJ set for data only port

John Liu59

Part Number: TPS65988DJ

Dear,

My customer has one notebook application need support two typeC port, one is used as full function and the other is for USB3.0 only.

Here is a scenario that there is adaptor connected to the USB3.0 only port, at this condition, EC need know the situation and give notice in the system to say the wrong connection.

Could you please help check how to set the FW and let EC to distinguish the power connection?

Thanks.

over 6 years ago

0 Prajith Cheerakkoda over 6 years ago

TI__Genius 9370 points

Hi,

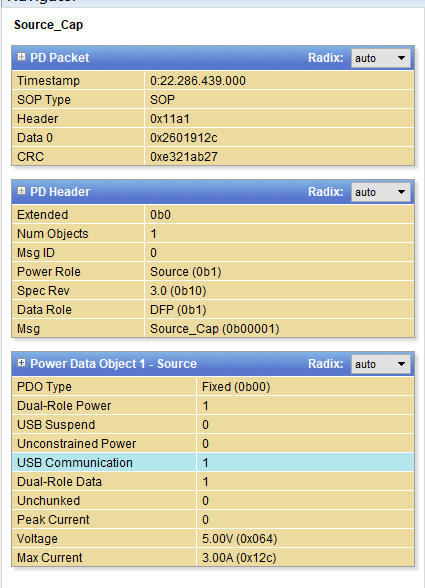

You can identify USB capability of the far end device by looking at Source capability packet on plug event of that port.

Please check TPS65988DJ TRM for interrupt events (0x14 - 0x19 IntEventX, IntMaskX, IntClearX Registers) and how to read Source capability message.

Thanks

Prajith

0 John Liu59 over 6 years ago in reply to Prajith Cheerakkoda

TI__Intellectual 2735 points

Hi Prajith,

Could you please help confirm which resistor should be read?

I can only find the "USB Communication" message in 0x1A register bit 23:22, can this bit be used in this application?

Thanks.

0 Prajith Cheerakkoda over 6 years ago in reply to John Liu59

TI__Genius 9370 points

Hello,

Please check - 0x5F Data Status Register Bit Field Definitions in TRM.

Thanks
Prajtih

0 John Liu59 over 6 years ago in reply to Prajith Cheerakkoda

TI__Intellectual 2735 points

Hi Prajtih,

Could you please give more information which bit of 0x5F should be checked?

Thanks.

0 Prajith Cheerakkoda over 6 years ago in reply to John Liu59

TI__Genius 9370 points

Hi John,

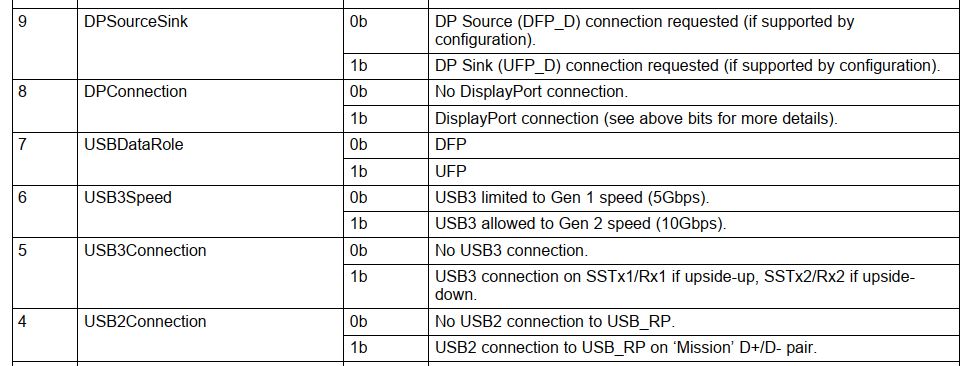

Please find the table below

0 Prajith Cheerakkoda over 6 years ago in reply to Prajith Cheerakkoda

TI__Genius 9370 points

Hi John,

Please find the table below

0 John Liu59 over 6 years ago in reply to Prajith Cheerakkoda

TI__Intellectual 2735 points

Hi Prajith,

So when only adaptor is inserted, there is no USB and DP connection, we can check the ox5F resistor to know this situation, am I right?

Thanks for your information, we will try later in this project.

Thanks.
