DP83825I: PHYRCR [14] digital reset software restart bit function

MarcoB

Prodigy 235 points

Part Number: DP83825I

Hi,

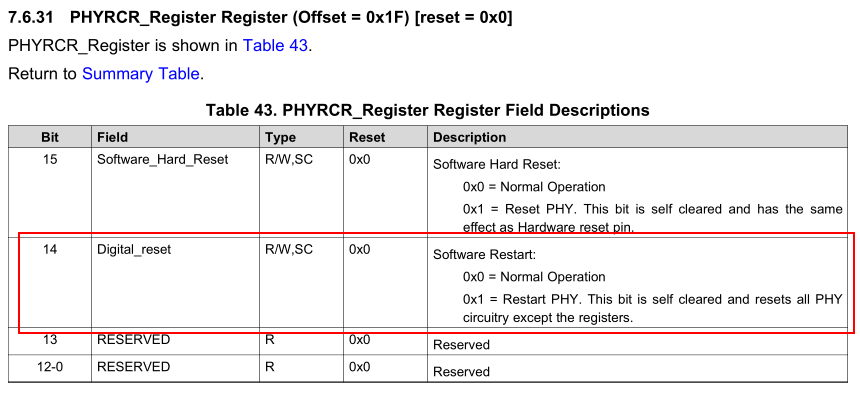

I've some questions about Digital_reset / Software reset field in DP83825I PHYRCR [14] register.

what is its real function? what is it useful for?
What is the difference with the other on chip resets? for example:
1. Reset pin
2. Reset, in BMCR [15]
3. Software_Hard_Reset, in PHYRCR [15]
4. PCS_Reset, in MMD3_PCS_CTRL_1 [15]

Regards,

marco

over 5 years ago

0 Vibhu Vanjari over 5 years ago

TI__Genius 11900 points

Hello Marco,

The reset pin, BMCR[15] and software_hard_reset will restart the PHY and reset all registers.

The Digital_reset will only restart the PHY, but will not reset any registers.

PCS reset will restart the PHY and reset the PCS, MMD3 and MMD7 registers only. (a quick search of the datasheet will give you what these registers are)

Thanks,

Vibhu

0 MarcoB over 5 years ago in reply to Vibhu Vanjari

Prodigy 235 points

Many thanks

(In the datasheet the difference is not so well explained).

Regards

marco
