HD3SS215: problem while routing PCB following datasheet

Moataz Beheta

Part Number: HD3SS215

Hello everybody

I am designing a HDMI switch Board, using HD3SS215 IC

but I faced a problem while routing the PCB, following the datasheet, the pins of IC must be directly connected to HDMI connector without Vias to avoid noise

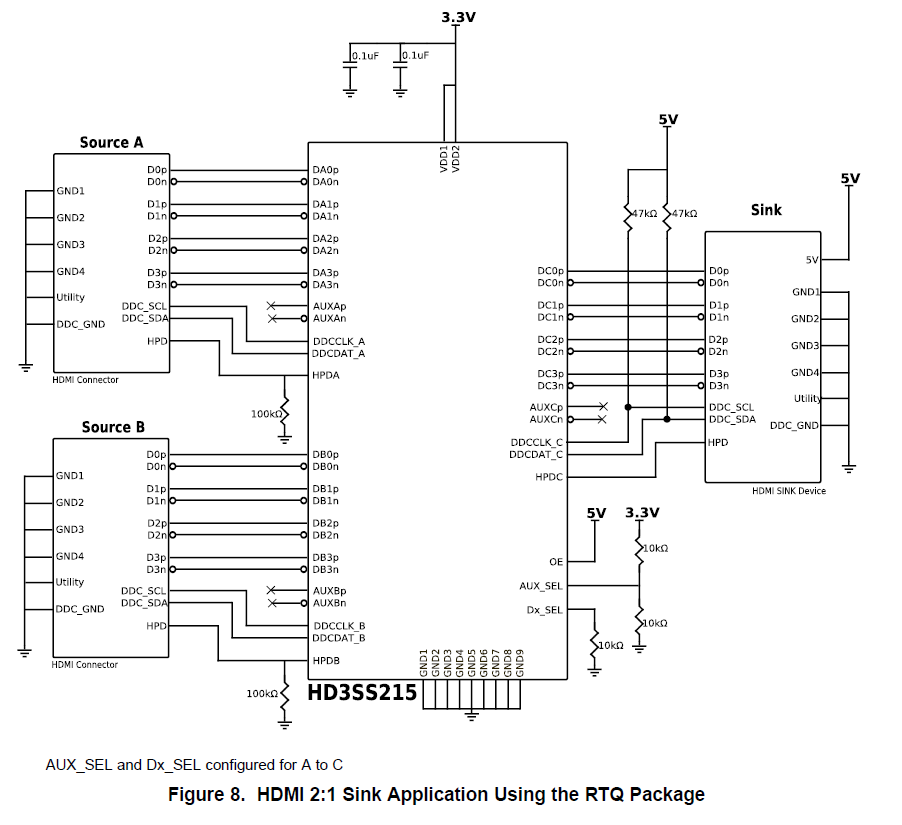

but I found that I will need a lot of vias in my design and I don't know the reason, I followed the schematic shown in the datasheet

I tried many other ICs and Connector but the same

so anyone can help me ?

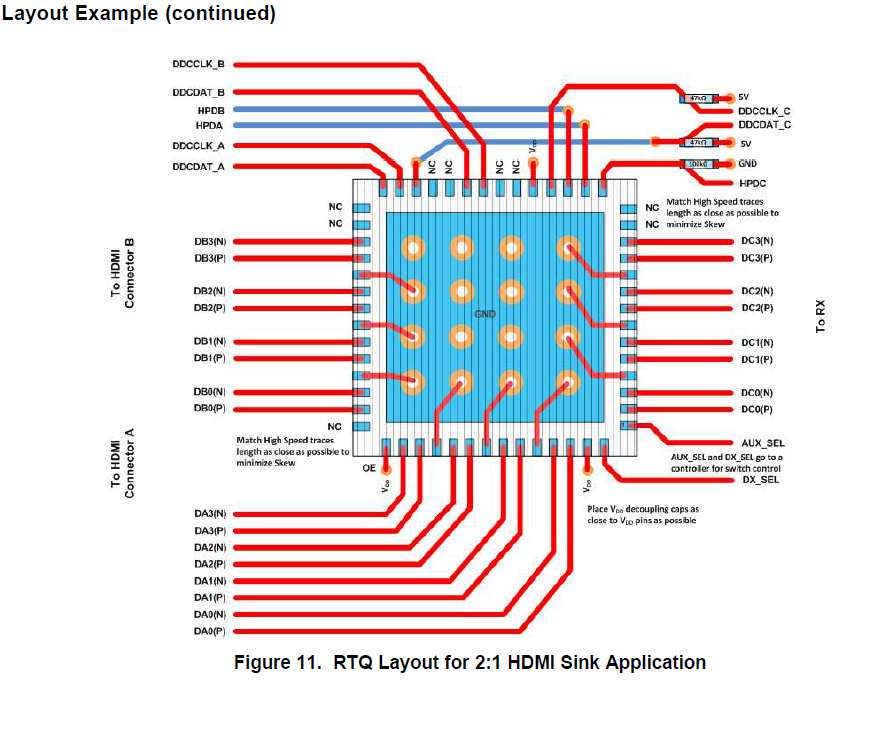

please kindly check the attached photos, I will find screenshots from datasheet and from my design

over 5 years ago

0 David (ASIC) Liu over 5 years ago

TI__Guru**** 177321 points

Hi,

Can you please accept my friendship request? I can share with you the HD3SS215 EVM layout file and you can use it as a reference for your layout.

Thanks

David

0 Moataz Beheta over 5 years ago in reply to David (ASIC) Liu

Prodigy 25 points

done dear

thank you

0 David (ASIC) Liu over 5 years ago in reply to Moataz Beheta

TI__Guru**** 177321 points

Hi,

I sent you the layout file, please check.

Thanks

David
