DS90UB948-Q1: NO ACK Response

zhipeng fu

Part Number: DS90UB948-Q1

1、IDX=0V,R1=open，R2=10K

2、SDA、SCL Extenal pullup =4.7k

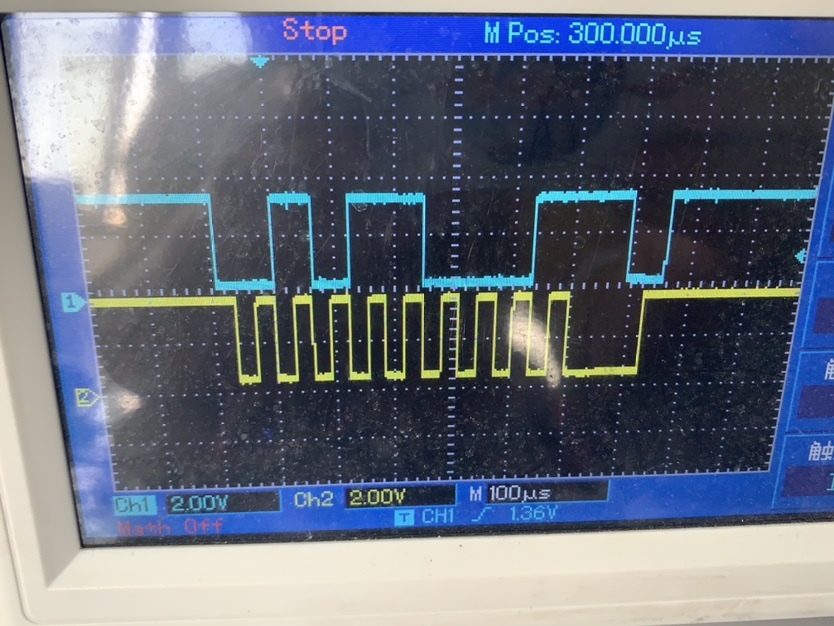

3、MCU as the master ，send device ID =0X58，no ack response。

0 Casey McCrea over 5 years ago

Hello Zhipeng,

Can you confirm the 948 device is properly powered up and the PDB pin is high?

Best Regards,

Casey

0 zhipeng fu over 5 years ago in reply to Casey McCrea

YES, PDB=H,BITSC=L,BITSEN=L

0 Aaron Heng over 5 years ago in reply to zhipeng fu

Hi Zhipeng,

I would like to review your schematic. Could you please provide me the schematic? Also, could you please measure the voltage at IDx pin and PDB pin?

Aaron

0 zhipeng fu over 5 years ago in reply to Aaron Heng

my schematic is same wiht the snlu165.pdf about the part of the ds90ub948-q1，and the PDB=3.3 ,IDX=0V

0 zhipeng fu over 5 years ago in reply to zhipeng fu

thanks for your help，I have find the problem out and resolve it.

0 Aaron Heng over 5 years ago in reply to zhipeng fu

Hi Zhipen,

Could you please let me know what have you done to resolve the issue? What is the issue? Thank you.

Aaron

0 zhipeng fu over 5 years ago in reply to Aaron Heng

of course，everything is my fault，it‘s the problem of the chip welding
