TPD1E01B04: 3D step model of DPL package

Agi Darlow

Prodigy 160 points

Part Number: TPD1E01B04

Is a 3D step model available for the DPL package?

over 5 years ago

0 Andy Robles over 5 years ago

TI__Genius 13760 points

Hi,

Welcome to E2E!

The models and symbols can be downloaded directly from the product folder.

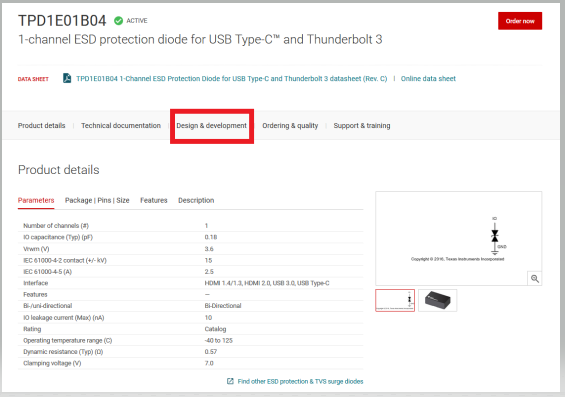

Once you're in the product folder click on the design and development tab.

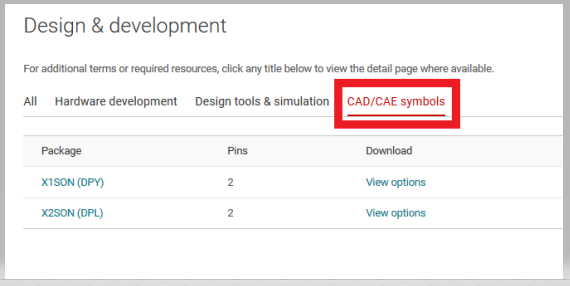

Once in the design and development tab click on "CAD/CAE symbols" and select the DPL package option. This will have the models and symbols we have available for the TPD1E01B04.

Best regards,

Andy Robles

0 Agi Darlow over 5 years ago in reply to Andy Robles

Prodigy 160 points

Hi Andy,

I did this initially and again, now but the folder called STEP is empty for X2SON (DPL). The step model for the other package (DPY) is in its own folder but that is not the one I need to use.

Regards,

Agi

0 Andy Robles over 5 years ago in reply to Agi Darlow

TI__Genius 13760 points

Hi Agi,

I see the problem. Attached is the step file for the DPL package.

Best regards,

Andy RoblesDPLR.zip
