TPD3S716-Q1: IBIS model , D+/- ,VD+/- can only be assigned as input.

user3894159

Part Number: TPD3S716-Q1

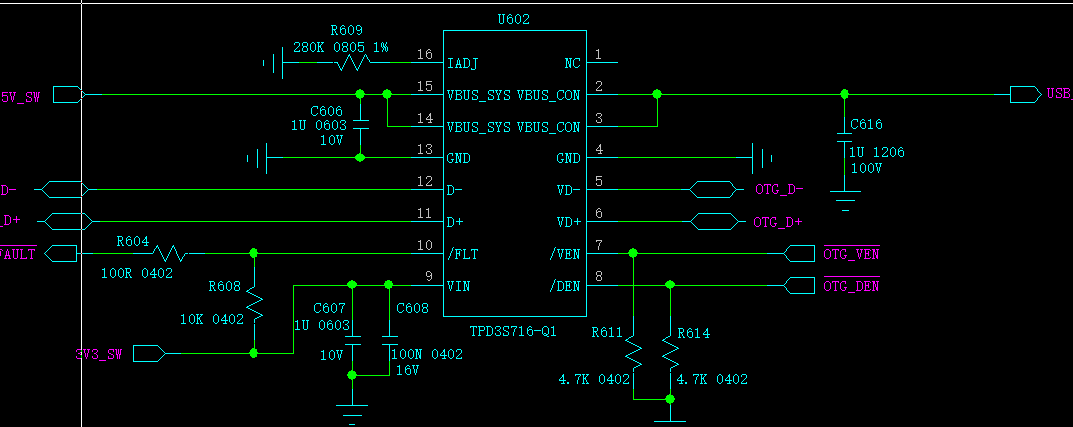

We used a TPD3S716-Q1 in our design and I downloaded the IBIS model from TI website.

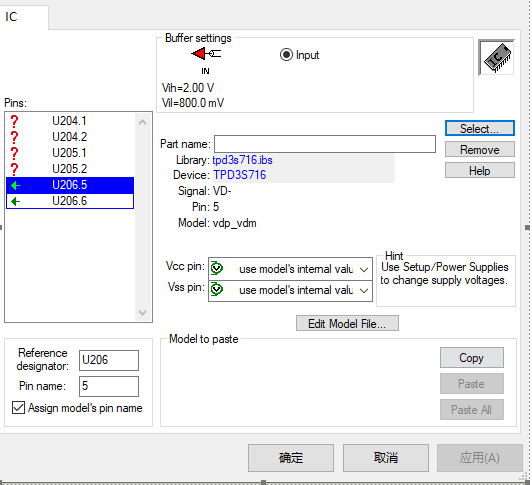

Now I want to do fasteye channel analysis for USB D+/- nets. when I assign IBIS model to TPD3S716-Q1 ,D+/- ,VD+/- can only be assigned as input. In my opinion, one group should be assigned as input, and the

other group should be assigned as output. And also on the datasheet, all these pins are I/O type.

So I can't finish the simulation to USB data line.

over 5 years ago

0 Michael Tan over 5 years ago

TI__Expert 8420 points

Hi,

The model may not optimize . Is that possible to using the S parameter to simulate?

0 user3894159 over 5 years ago in reply to Michael Tan

Prodigy 210 points

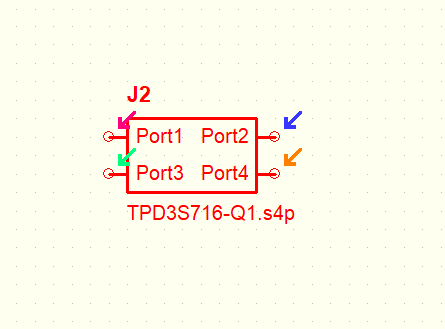

The pic below is S parameter of TPD3S716-Q1, can you tell me which network do the four ports corresponding to? thanks!

0 Michael Tan over 5 years ago in reply to user3894159

TI__Expert 8420 points

Hi,

I can't confirm the in and out pin.

You can use the 1,2 for D+,D- and 3,4 for VD+,VD- to try.

If not, use the 1,3 for for D+,D- and 2,4 for VD+,VD- to try.
