DP83867E: RJ45 Connector

Hans

Genius 12865 points

Part Number: DP83867E

Hello Team,

can this connector from Wuerth be used: https://www.we-online.de/katalog/datasheet/7498111120AR.pdf ?

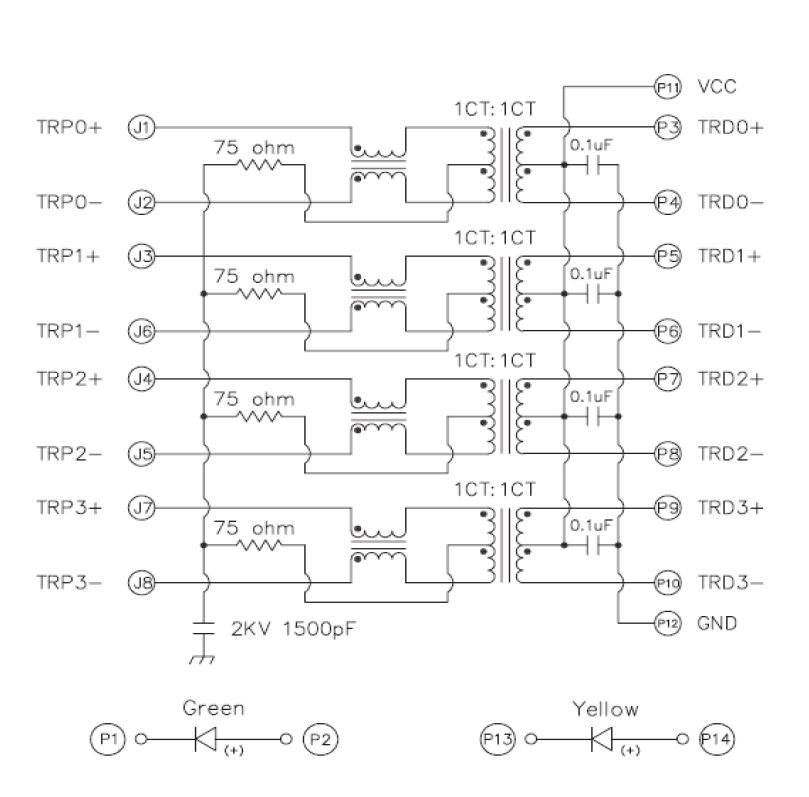

I am concerned regarding the 4 x 100nF which create a short between all 4 center pins.

Thanks and Best Regards,

Hans

over 5 years ago

0 Cecilia Reyes over 5 years ago

TI__Genius 9920 points

Hi Hans,

If you refer to our troubleshooting guide for the DP83867 https://www.ti.com/lit/an/snla246a/snla246a.pdf

the recommendation shows a 100nF capacitor for each center tap to gnd but they should be isolated and not shorted together at the center taps.

Thanks,

Cecilia

0 Hans over 5 years ago in reply to Cecilia Reyes

TI__Genius 12865 points

Hello Cecilia,

thanks for the recommendations, but the question is if this connector can be used with our PHY. I cannot imagine that Wuerth sells RJ45 connectors which are not possible to use :-)

May I kindly ask you why this connector cannot be used? What are the reasons for not using it?

Thanks and Best Regards,

Hans

0 Cecilia Reyes over 5 years ago in reply to Hans

TI__Genius 9920 points

Hi Hans,

Thanks for the clarification!

The connector can be used however it can introduce compliance issues and it is not something we have completely validated.

Thanks,

Cecilia
