DP83TC811S-Q1: Two PHYs communication

Amelie Zheng

Part Number: DP83TC811S-Q1

Hi Team,

May I ask the following questions:

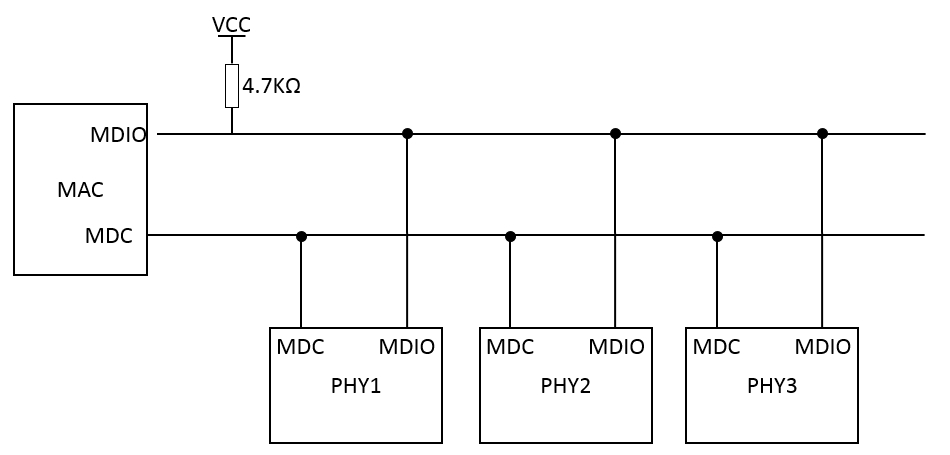

1) Two PHYs are connected to the MAC at the same time. Can the MDC and MDIO of each chip be connected to the MAC in parallel? As shown below.

2) If it is connected in parallel, when MAC and PHY communicate, how to distinguish PHY1 or PHY2?

over 5 years ago

0 Geet Modi over 5 years ago

TI__Mastermind 26320 points

Hi,

1. Yes, your connections are correct.

2. Each PHY has to be configured with unique PHy Address. Same is used to communicate to individual PHY.

Regards,

Geet

0 Amelie Zheng over 5 years ago in reply to Geet Modi

TI__Genius 10865 points

Hi Geet,

Thanks for your quickly reply.

May I ask how to configure each PHY address, is it through software or hardware (peripheral circuit)?

0 Vikram Sharma over 5 years ago in reply to Amelie Zheng

TI__Genius 16030 points

Hi Amelie,

Phy address can be configured through strap resistors on pin rx_dv and rx_er pins. Do refer to these tables of datasheet for required implementation : "Recommended 4-level strap resistor ratios", "4-level bootstraps" and "phy address bootstraps"

Regards,

Vikram
