THVD1450: Equivalent Receiver Inputs Resistors

Hao Wang14

Part Number: THVD1450
Other Parts Discussed in Thread: SN65HVD75,

Hi Team,

Does THVD1450 has the same equivalent receiver inputs as SN65HVD75? If so, what's the equivalent resistor value of R1/R2/R3 and current source?

Thanks and Best Regards!

Hao

0 Hao L over 5 years ago

Hao,

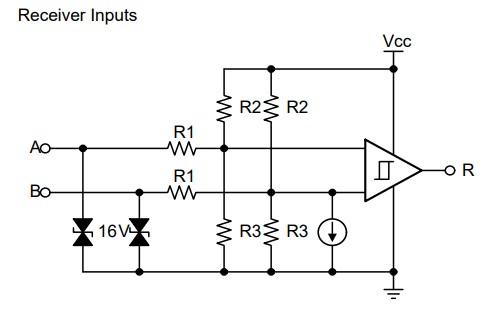

I copy the schematic of THVD1450 here, which has minor difference on that of SN65HVD75.

In the diagram, R1 and R2 are typically about 200kOhm and 10kOhm.

Regards,

Hao

0 Hao Wang14 over 5 years ago in reply to Hao L

Hi Hao,

What's the voltage and current for the receiver inputs? Thanks!

Best Regards!

Hao
