TUSB551: USB-Redriver Evaluation Module VS TUSB501EVM

JaeChan An

Prodigy 130 points

Part Number: TUSB551
Other Parts Discussed in Thread: TUSB501

I'm trying to use TUSB551, but refer to evm i have a question.

why RX line Redirve to TX line?

And In "USB-Redriver Evaluation Module(TUSB501)" Document connect to RX Line Redrive to RX Line.

But EVM RX line Redriver to TX Line.

over 5 years ago

0 Malik Barton57 over 5 years ago

TI__Guru 64326 points

Hi,

Could you provide the schematic for the EVM you are working with?

0 JaeChan An over 5 years ago in reply to Malik Barton57

Prodigy 130 points

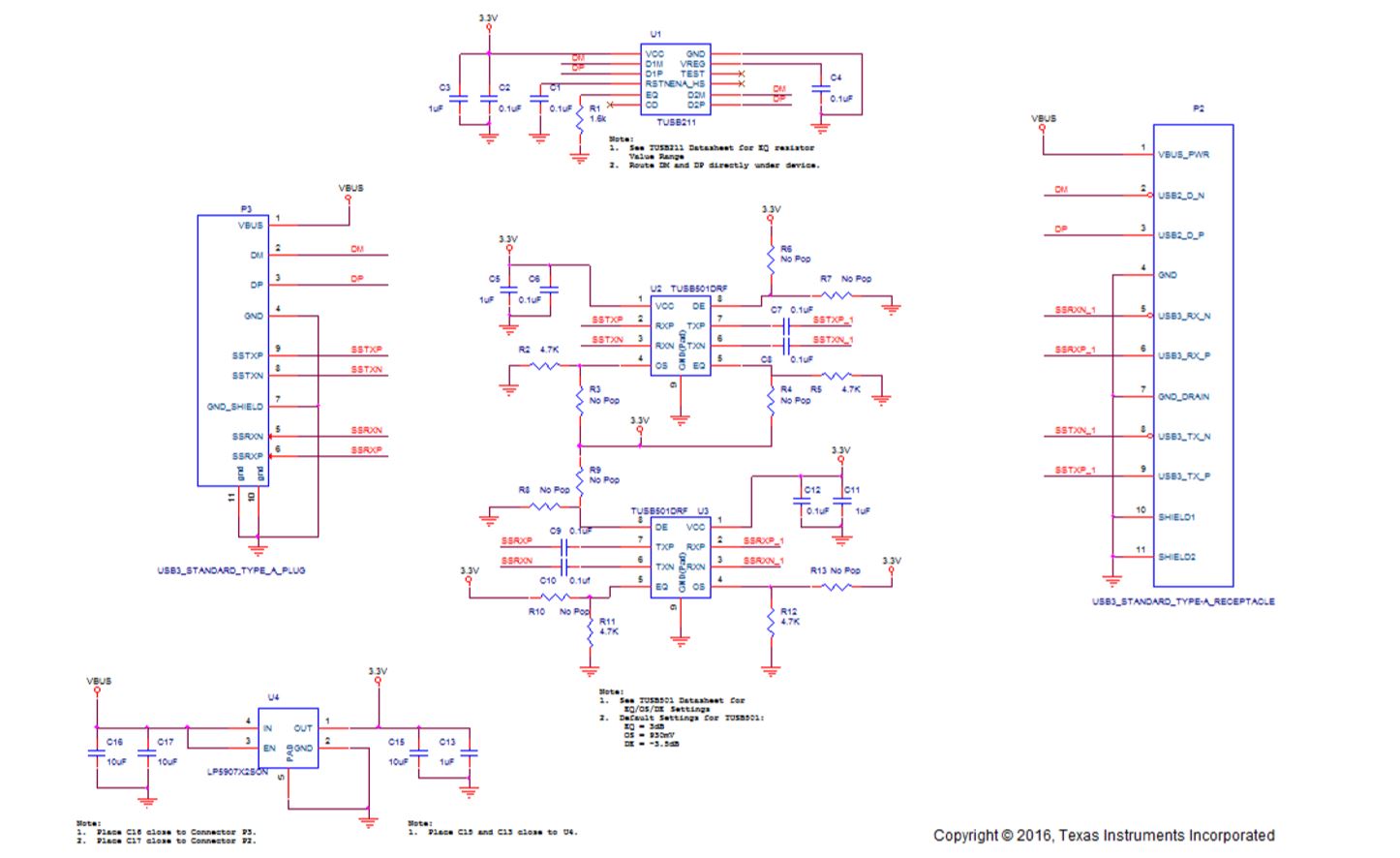

this is USB-Redriver Evaluation Module(TUSB501) documents.

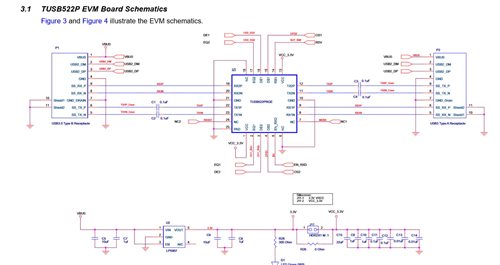

And This is TUSB522 EVM documents scamatic.

0 Malik Barton57 over 5 years ago in reply to JaeChan An

TI__Guru 64326 points

Hi,

The TUSB551EVM uses a Type-A plug instead of a Type-B receptacle and the appropriate pins are labeled differently. Type-B receptacles are labeled from the device perspective where SSRX is the USB Host TX coming from the cable assembly.

0 JaeChan An over 5 years ago in reply to Malik Barton57

Prodigy 130 points

Hi Malik

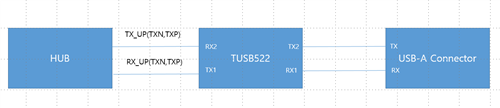

Then it is okay to connect such like that picture?

Thanks!

0 Malik Barton57 over 5 years ago in reply to JaeChan An

TI__Guru 64326 points

Hi,

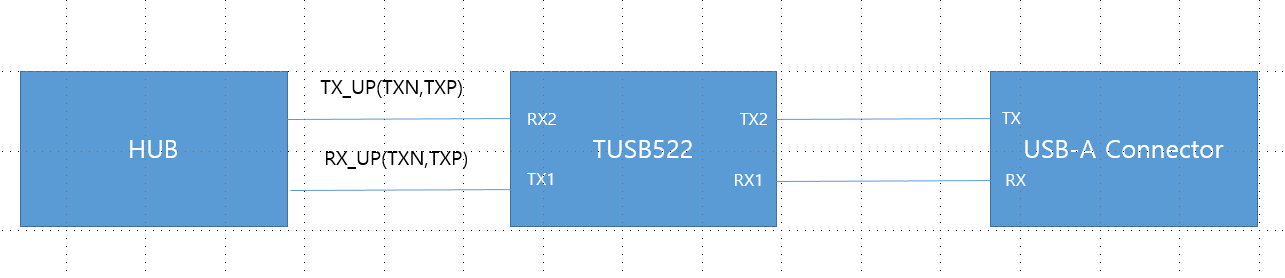

The above image seems correct assuming RX_UP is (RXN,RXP) not (TXN, TXP).

0 JaeChan An over 5 years ago in reply to Malik Barton57

Prodigy 130 points

Thanks Malik that's my mistake RX_UP means RXN,RXP
