DS90UB927QEVM: Waht is dimensions of PCB? and other like DS90UB928QEVM and DS90UB929QEVM

Anton Lukyanov

Prodigy 30 points

Part Number: DS90UB927QEVM
Other Parts Discussed in Thread: DS90UB928QEVM, , DS90UB929-Q1EVM

Hello, All!

What is dimension of DS90UB927QEVM, DS90UB928QEVM and DS90UB929QEVM boards?
What position of assenbling holes of PCBs?

Thank you

Anton Lukyanov

over 4 years ago

0 Aaron Heng over 4 years ago

TI__Mastermind 36920 points

Hi Anton,

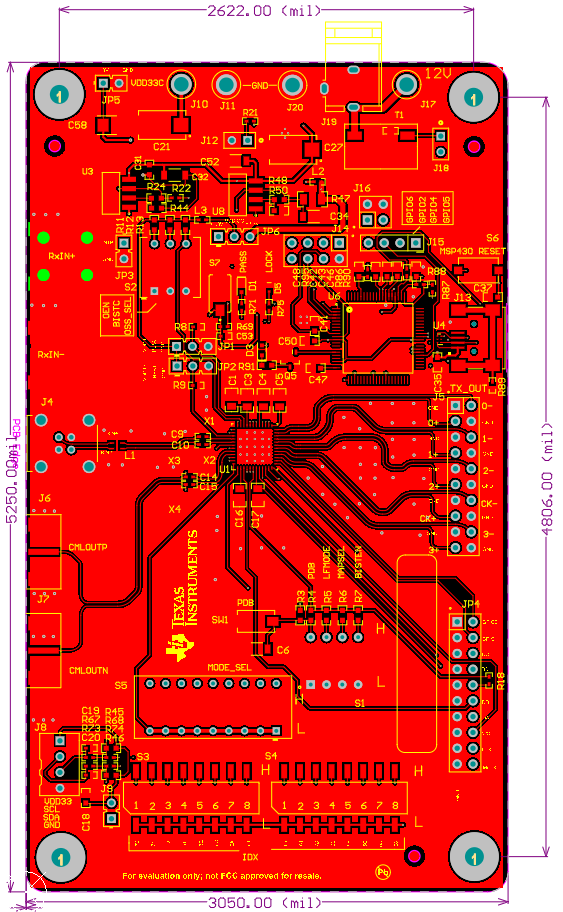

Attached is the dimension for the board and mounting hole for DS90UB928-Q1EVM. I have trouble converting from old Orcad to Allegro. I will look into this, and back with you.

Aaron

0 Anton Lukyanov over 4 years ago in reply to Aaron Heng

Prodigy 30 points

Great, Aaron!

This is what I need.

Could I get link on GERBER files on other boards to gain dimensions?

Thank you

Anton

0 Aaron Heng over 4 years ago in reply to Anton Lukyanov

TI__Mastermind 36920 points

Hi Anton,

Please see two boards that you are inquired about the dimension.

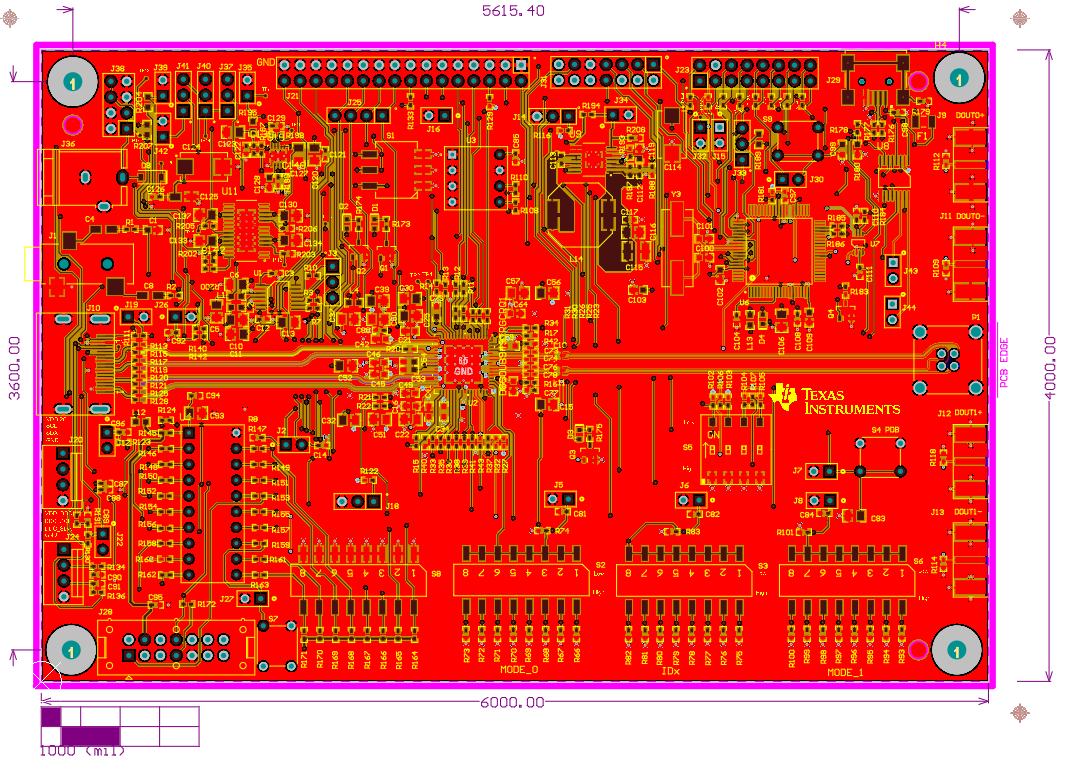

DS90UB927-Q1EVM

DS90UB929-Q1EVM

Aaron

0 Anton Lukyanov over 4 years ago in reply to Aaron Heng

Prodigy 30 points

Hi, Aaron!
I'm very appreciate for your efforts.

It was need for case design. But today with COVID19 restriction I cannot visit office often and cannot have access to our B929 B928 B927 Eval boards.

Thank you.
