DP83822I: Configuration without Magnetics and RJ45

Shotaro Sakai

Expert 3390 points

Part Number: DP83822I

Hello team,

Is the following configuration possible when using DP83822I?

"PHY → Capacitor → Connector → Harness → Connector → Capacitor → PHY"

This configuration is used at board connection in the product the customer is developing.

Best regards,

Shotaro

over 4 years ago

0 Vikram Sharma over 4 years ago

TI__Genius 16030 points

Hello Shotaro-san,

Is it for communication over fiber or is it for copper cable? 822 supports fiber communication with cap coupling (as mentioned in the datasheet). I am checking if we have some data for cap coupled application with normal ethernet copper cable also.

Regards,

Vikram

0 Shotaro Sakai over 4 years ago in reply to Vikram Sharma

TI__Expert 3390 points

Hello Vikram-san,

The communication is for copper cable.

So please check if we have some data for cap coupled application with normal ethernet copper cable.

Best regards,

Shotaro

0 Vikram Sharma over 4 years ago in reply to Shotaro Sakai

TI__Genius 16030 points

Hello Shotaro-san,

Yes cap coupled application is possible. We need to write following extra register to make transmitter of 822 support cap coupled application :

Regards,

Vikram

0 Shotaro Sakai over 4 years ago in reply to Vikram Sharma

TI__Expert 3390 points

Hello Vikram-san,

Thank you for your comments!

May I question the below?

Can we provide a document or reference guide for cap coupled application to the customer?
Can DP83822I be used with EtherCAT (100Mbps)?

Best regards,

Shotaro

0 Vikram Sharma over 4 years ago in reply to Shotaro Sakai

TI__Genius 16030 points

Hello Shotaro,

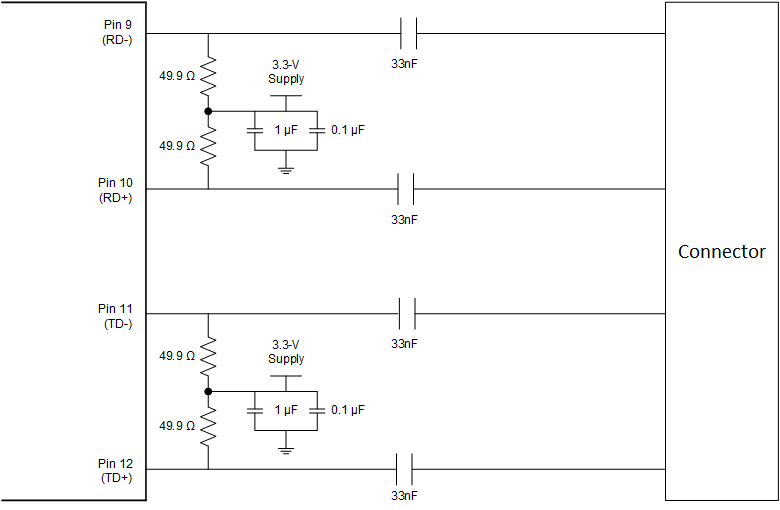

At present we can help by sharing following application diagram ;

Also I found following application note highlighting DP83822 as qualified EtherCAT phy ;

Regards,

Vikram

0 Vikram Sharma over 4 years ago in reply to Vikram Sharma

TI__Genius 16030 points

Also I found one EtherCAT reference design with 822.

0 Shotaro Sakai over 4 years ago in reply to Vikram Sharma

TI__Expert 3390 points

Hello Vikram-san,

Thank you provide us the materials. These are very helpful for us.

I want to confirm the below. Could you please give us your comments?

"Is it correct to recognize that setting to write 0x0024 to register <0x0404> does not affect the required specifications of EtherCAT?"

That means "can DP83822I be used as EtherCAT when register <0x0404> is set to 0x0024?"

I appreciate your strong support.

Best regards,

Shotaro

0 Vikram Sharma over 4 years ago in reply to Shotaro Sakai

TI__Genius 16030 points

Hello Shotaro-san,

Register 0x0404 is required to be written only for cap coupled application. For application with magnetics this write is not required.

EtherCAT is supported for both cap coupled and magnetic application.

Regards,

Vikram
