DS90UB941AS-Q1: Internal pattern GEN for dual display output

Alex Yeh

Part Number: DS90UB941AS-Q1

Hi team,

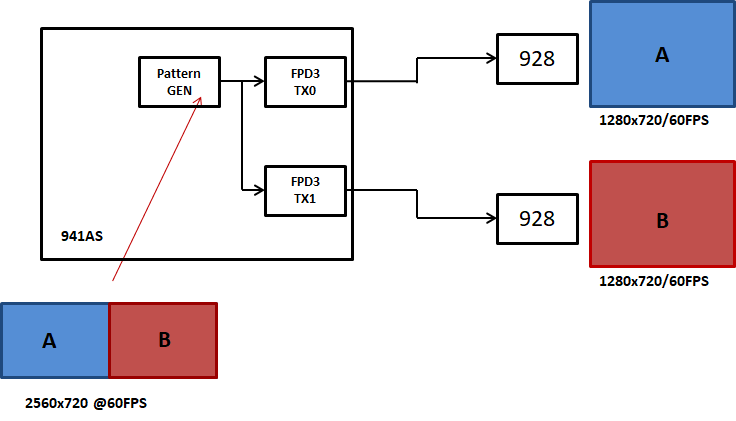

I would like to know if it's doable for 941 internal pattern to configure a side by side video and spilt into separate display as below diagram?

If yes, do you have a example script for configure the pattern gen, and relevant setting for split mode?

Regards,

alex

over 4 years ago

0 Aaron Heng over 4 years ago

TI__Mastermind 36950 points

Hi Alex,

Thank you for reaching out to us. Let me check this, and I will get back with you by 10/14.

Aaron

0 Aaron Heng over 4 years ago in reply to Aaron Heng

TI__Mastermind 36950 points

Hi Alex,

I reviewed your request. This shouldn't be a problem having the patgen output 2x 928. The 941AS should have 2x patgen; so this should be possible. If you want to access the other patgen, you need to set TX_PORT_SEL to port 1. In order for me to get the patgen up and running, I need to bring up the system in the lab. I will get the script for you by 10/23.

If you have any further questions, please reach out to me.

Aaron

0 Alex Yeh over 4 years ago in reply to Aaron Heng

TI__Expert 5415 points

Hello Aaron,

Thanks a lot for confirming this. I will send you the script I made for checking.

Regards,

Alex

0 Shubiao Wang over 4 years ago in reply to Alex Yeh

TI__Intellectual 1490 points

Hi Alex, Arron,

I am also interested in the split mode you mentioned above.

Would you kindly share your script with me?

Best regards,

Shubiao Wang
