DS15BA101: Termination resistor

Shuji Ishiwata

Mastermind 7755 points

Part Number: DS15BA101

Hi All,

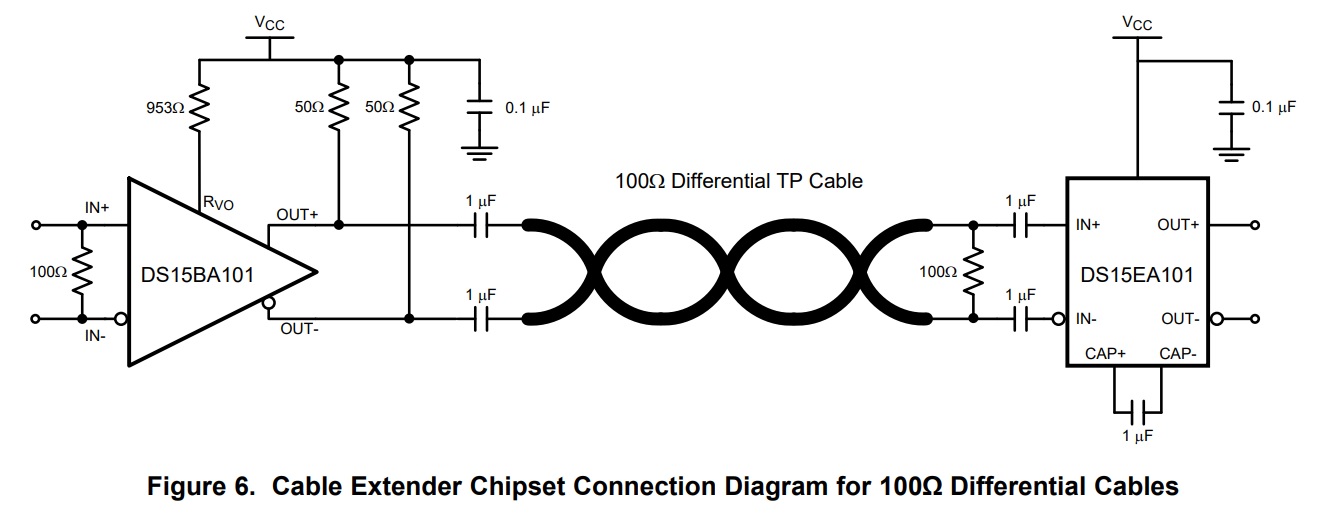

I have a question about termination resistor in fig.6 for DS15BA101.

Is it possible to put this termination resistor after the capacitor?
I want to put a termination resistor near the IC.

Best Regards,
Ishiwata

over 4 years ago

0 Nasser Mohammadi over 4 years ago

TI__Guru* 93670 points

Hi Ishiwata,

Yes you can put the termination after 1uF Cap and as close to the device as possible. This will reduce any potential noise coupling into the input of the device.

Regards,, Nasser

0 Shuji Ishiwata over 4 years ago in reply to Nasser Mohammadi

Mastermind 7755 points

Hi Nasser,

Thank you for your answer.

Best Regards,
Ishiwata
