TUSB1042I: Eye diagram height cannot meet the specs

Hao Wang14

Part Number: TUSB1042I

Hi Team,

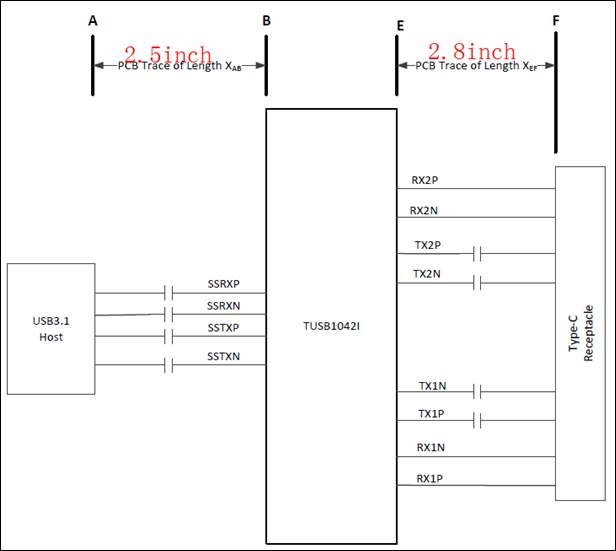

TUSB1042I is used as shown in the picture, but the eye height cannot meet the USB3 specs with all different EQ settings, could you please help advise if there is any other recommendations to meet the eye height?

The datasheet also mentions the compliance mode, should TUSB1042I enter the compliance mode when doing the USB3 test?

Thanks and Best Regards!

Hao

over 4 years ago

0 Brian Zhou over 4 years ago

TI__Guru*** 145550 points

based on your pcb trace length, it should pass USB3 compliance, can we take a look of your layout?

0 Brian Zhou over 4 years ago in reply to Brian Zhou

TI__Guru*** 145550 points

still need help?

0 Hao Wang14 over 4 years ago in reply to Brian Zhou

TI__Expert 4415 points

Hi Brian,

Thanks for your support, as customer cannot share their layout, so I think we can close it.

Best Regards!

Hao
