TPS65987D: VBUS Detect

Michael Balourdas

Part Number: TPS65987D

Hello,

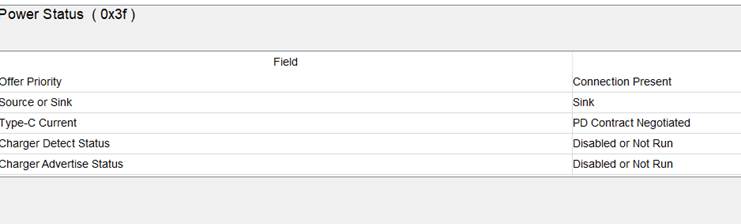

I am trying to have one of my GPIOs (GPIO 20) go high on a VBUS Detect Event. I have set the mapped event to "Port 0 VBUS Detect Event" and the Power Status is source, but when I connect a USBC cable and measure 5V on VBUS, I don't see GPIO 20 go high. Is there something I'm missing?

Thanks,

Michael

over 4 years ago

0 Hari Patel1 over 4 years ago

TI__Genius 12700 points

Hi Michael,

Could you elaborate how you are testing this? Are you doing this in dead-battery mode, how do you have the GPIO connected, etc.

Also is this using the EVM and would you be able to attach your project file and PD logs?

Thank you,

Hari

0 Michael Balourdas over 4 years ago in reply to Hari Patel1

TI__Expert 5455 points

Hari,

I sent you an email with the schematic and prj file.

Thanks,

Michael

0 Michael Balourdas over 4 years ago in reply to Hari Patel1

TI__Expert 5455 points

Hari,

Also, there is an external 3.3V supply present on the 3.3Vin, so we are not in dead battery mode.

Thanks,

Michael

0 Hari Patel1 over 4 years ago in reply to Michael Balourdas

TI__Genius 12700 points

Hi Michael,

I will take a look at the project file and schematic and provide you with some feedback next week.

For the VIN_3V3, if you are in dead battery mode, the PD controller will receive power from VBUS, which will turn on the LDO_3V3 to power the internal circuitry instead of VIN_3V3. I would recommend taking a look at the dead battery mode application note for some more detailed info.

Thank you,

Hari
