DP83TG720S-Q1: DP83TG720S-Q1 or DP83TC811

Xingchao Fu

Part Number: DP83TG720S-Q1
Other Parts Discussed in Thread: DP83TC811

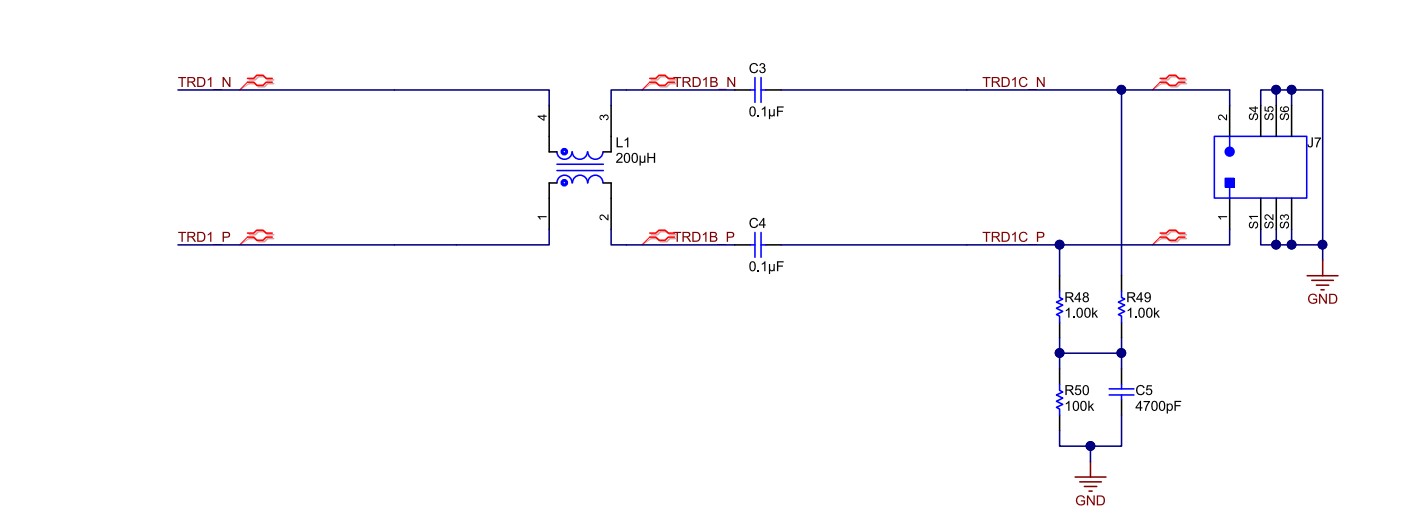

what is the principle for CM filter or termination to match impedances and improve signal integrity ot 100base T1 ethernet? just below circuits . what is the principle to select the rigiht value for CMC, resistor and capacitor?

thanks!

over 5 years ago

0 Cecilia Reyes over 5 years ago

TI__Genius 9920 points

Hi Xingchao Fu,

These values were selected through test and validation internally for optimal performance and best for EMI/EMC testing.

Thanks,

Cecilia

0 Cecilia Reyes over 5 years ago in reply to Cecilia Reyes

TI__Genius 9920 points

Attached is the application note on the systems and reference guide of the DP83TC811

www.ti.com/.../snla292.pdf

0 Xingchao Fu over 5 years ago in reply to Cecilia Reyes

Prodigy 110 points

yes, i got it ,if you have more design principle , please share me,thanks very much!

0 Cecilia Reyes over 5 years ago in reply to Xingchao Fu

TI__Genius 9920 points

I cannot share any more principles except for the fact that it has been optimized for best performance on EMI and EMC. Is there a reason you are requiring further principles on this?

Thanks,

Cecilia
