SN65DSI84: Jagged edges and burrs with the picture

Hao Wang14

Part Number: SN65DSI84

Hi Team,

When SN65DSI84 is in TEST_PATTERN by writing 0x10 to 0x3C register, the picture looks good, no jagged edges and burrs are observed.

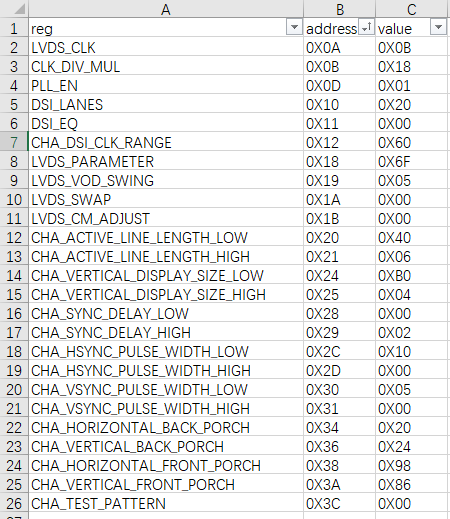

However, when the picture is selected by customer to display on the screen, the picture in the screen has jagged edges and burrs which can be seen between white and green. All the values of the registers are also in the table.

Could you please advise how to remove the jagged edges and burrs? Thanks!

Best Regards!

Hao

over 4 years ago

0 Ikechukwu Anyiam over 4 years ago

TI__Mastermind 35130 points

Hi Hao,

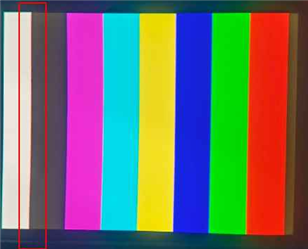

Can you provide an image of the test pattern?

Also, please follow the steps in this FAQ for configuration of the device: https://e2e.ti.com/support/interface/f/138/t/918890

Regards,

I.K.

0 Hao Wang14 over 4 years ago in reply to Ikechukwu Anyiam

TI__Expert 4415 points

Hi I.K.

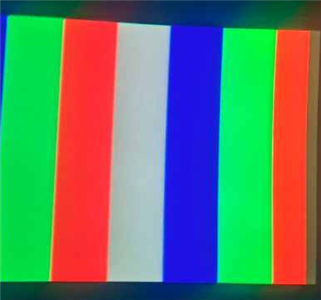

Here is the image of the test pattern, thanks!

Best Regards!

Hao

0 Ikechukwu Anyiam over 4 years ago in reply to Hao Wang14

TI__Mastermind 35130 points

Hi Hao,

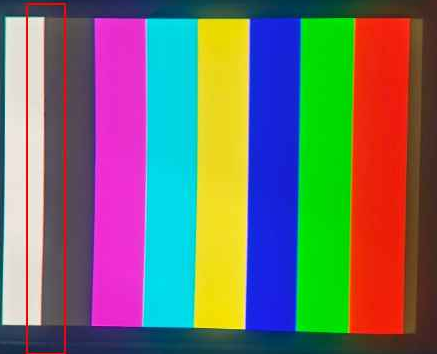

Is that brown on the right of the display part of your image? Also, did you reference the FAQ?

Regards,

I.K.
